All-Steel Die Set 5S...B/T

All-Steel Die Set

Product specifications :

● Plates Material: St37 , St52 , 1.1730
● Points:
- Other plates material, the sizes out of table, guide system, special machining and annealing of plates can be done on request.
- When the dimensions of the plates are larger than 500mm, the plates are equipped with 2 screw-in lifting studs named E201 in order to have an easy transportation.
- Regarding the thickness and dimensions of the Plates, more accurate tolerances can be done if requested.
- Possible to produce and montage your special guide system.
- Delivery time: 10 to 15 days respectively to dimensions of a1,b1.

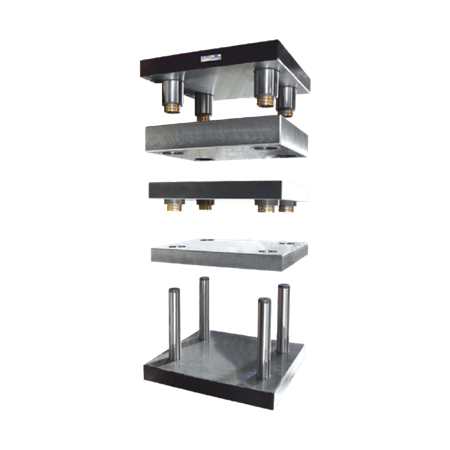

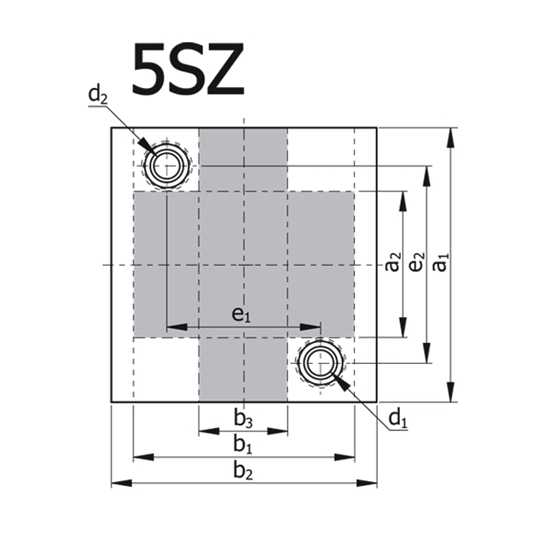

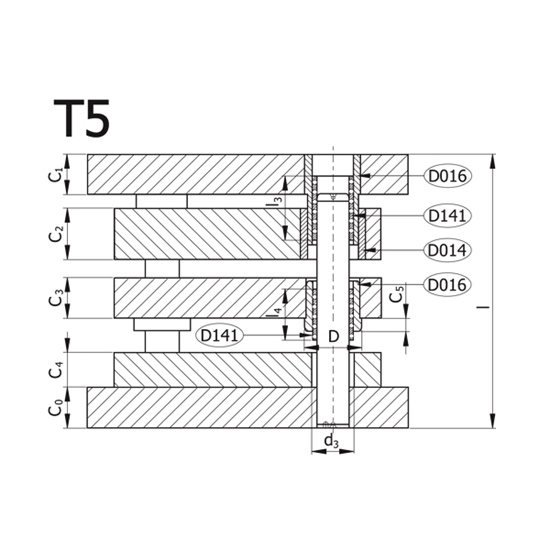

Picture of All-Steel Die Set 5S...B/T
Picture of All-Steel Die Set 5S...B/T
Picture of All-Steel Die Set 5S...B/T
Picture of All-Steel Die Set 5S...B/T
Picture of All-Steel Die Set 5S...B/T

The table below is smart. Use the slider in the first row of each column to find the right product.

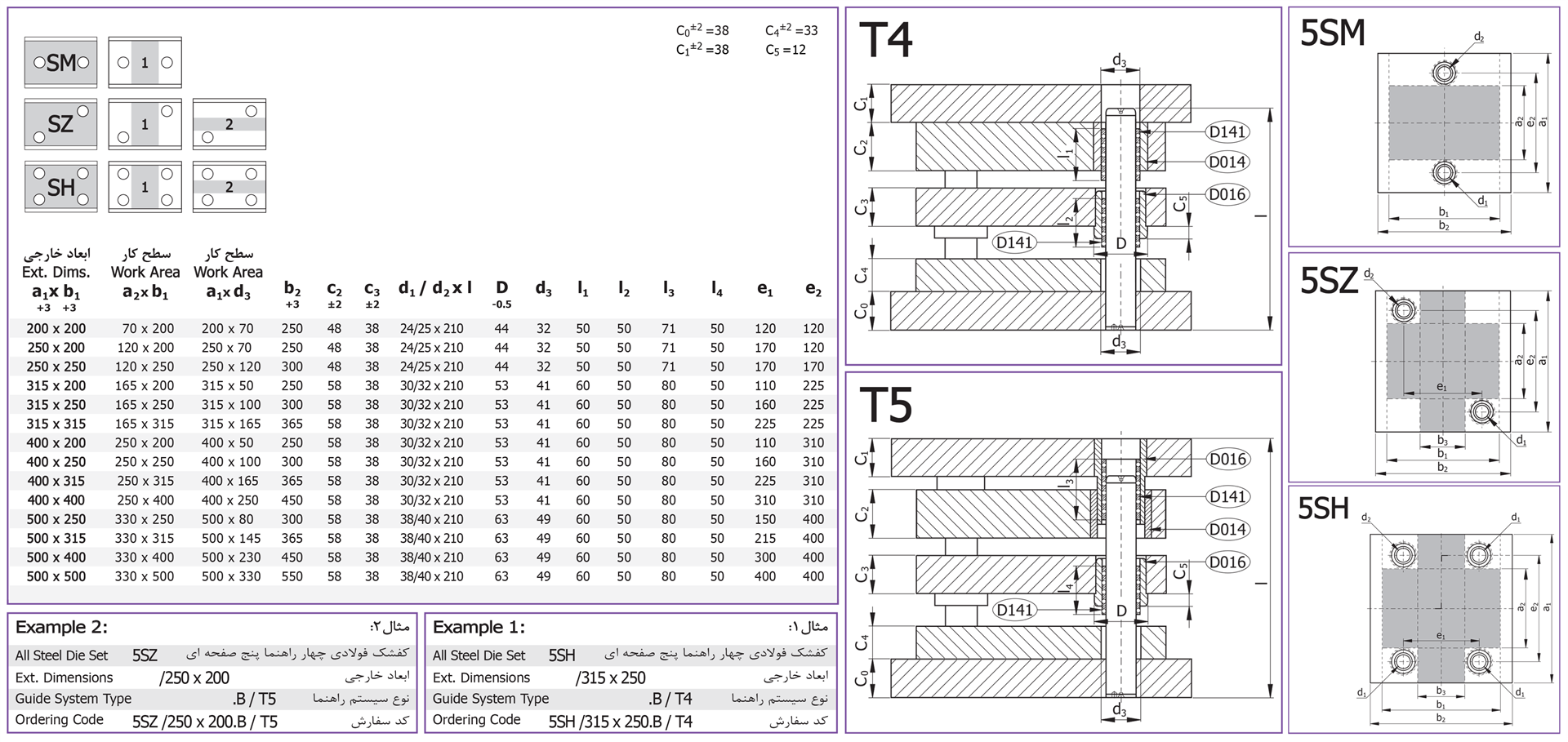

Ordering Code Ext. Dims. (a1xb1) Work Area (a2xb1) Work Area (a1xb3) Type Layout Guide system Price Add to cart Technical Data

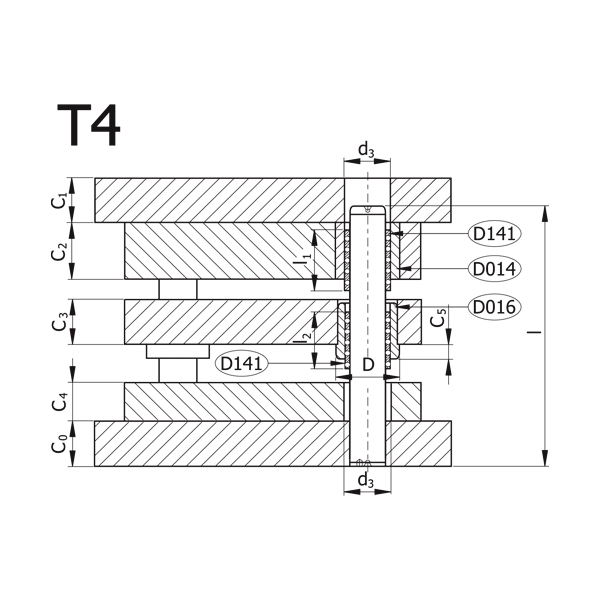

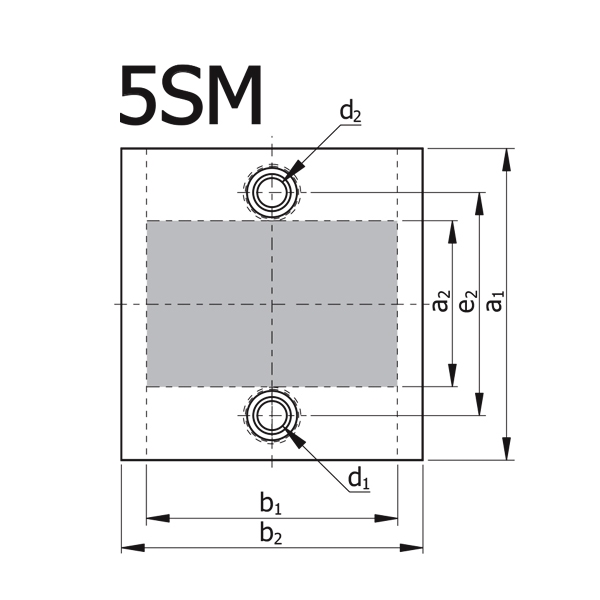

5SM/200x200.B/T4
200x200 70x200 - SM T4 B.
Call for pricing
5SM/250x200.B/T4
250x200 120x200 - SM T4 B.
Call for pricing
5SM/250x250.B/T4
250x250 120x250 - SM T4 B.
Call for pricing
5SM/315x200.B/T4
315x200 165x200 - SM T4 B.
Call for pricing
5SM/315x250.B/T4
315x250 165x250 - SM T4 B.
Call for pricing
5SM/315x315.B/T4
315x315 165x315 - SM T4 B.
Call for pricing
5SM/400x200.B/T4
400x200 250x200 - SM T4 B.
Call for pricing
5SM/400x250.B/T4
400x250 250x250 - SM T4 B.
Call for pricing
5SM/400x315.B/T4
400x315 250x315 - SM T4 B.
Call for pricing
5SM/400x400.B/T4
400x400 250x400 - SM T4 B.
Call for pricing
5SM/500x250.B/T4
500x250 330x250 - SM T4 B.
Call for pricing
5SM/500x315.B/T4
500x315 330x315 - SM T4 B.
Call for pricing
5SM/500x400.B/T4
500x400 330x400 - SM T4 B.
Call for pricing
5SM/500x500.B/T4
500x500 330x500 - SM T4 B.
Call for pricing

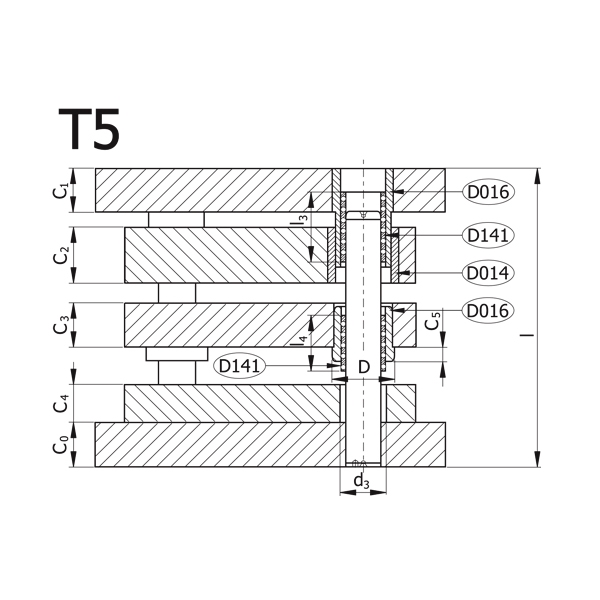

5SM/200x200.B/T5
200x200 70x200 - SM T5 B.
Call for pricing
5SM/250x200.B/T5
250x200 120x200 - SM T5 B.
Call for pricing
5SM/250x250.B/T5
250x250 120x250 - SM T5 B.
Call for pricing
5SM/315x200.B/T5
315x200 165x200 - SM T5 B.
Call for pricing
5SM/315x250.B/T5
315x250 165x250 - SM T5 B.
Call for pricing
5SM/315x315.B/T5
315x315 165x315 - SM T5 B.
Call for pricing
5SM/400x200.B/T5
400x200 250x200 - SM T5 B.
Call for pricing
5SM/400x250.B/T5
400x250 250x250 - SM T5 B.
Call for pricing
5SM/400x315.B/T5
400x315 250x315 - SM T5 B.
Call for pricing
5SM/400x400.B/T5
400x400 250x400 - SM T5 B.
Call for pricing
5SM/500x250.B/T5
500x250 330x250 - SM T5 B.
Call for pricing
5SM/500x315.B/T5
500x315 330x315 - SM T5 B.
Call for pricing
5SM/500x400.B/T5
500x400 330x400 - SM T5 B.
Call for pricing
5SM/500x500.B/T5
500x500 330x500 - SM T5 B
Call for pricing

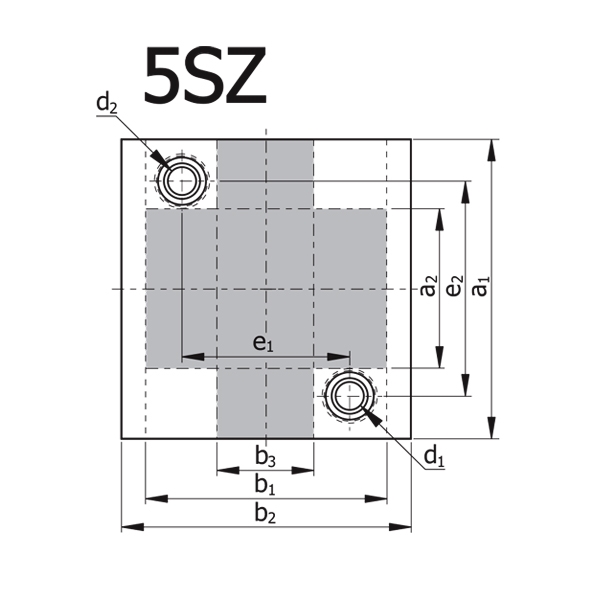

5SZ/200x200.B/T4
200x200 70x200 200x70 SZ T4 B.
Call for pricing
5SZ/250x200.B/T4
250x200 120x200 250x70 SZ T4 B.
Call for pricing
5SZ/250x250.B/T4
250x250 120x250 250x120 SZ T4 B.
Call for pricing
5SZ/315x200.B/T4
315x200 165x200 315x50 SZ T4 B.
Call for pricing
5SZ/315x250.B/T4
315x250 165x250 315x100 SZ T4 B.
Call for pricing
5SZ/315x315.B/T4
315x315 165x315 315x165 SZ T4 B.
Call for pricing
5SZ/400x200.B/T4
400x200 250x200 400x50 SZ T4 B.
Call for pricing
5SZ/400x250.B/T4
400x250 250x250 400x100 SZ T4 B.
Call for pricing
5SZ/400x315.B/T4
400x315 250x315 400x165 SZ T4 B.
Call for pricing
5SZ/400x400.B/T4
400x400 250x400 400x250 SZ T4 B.
Call for pricing
5SZ/500x250.B/T4
500x250 330x250 500x80 SZ T4 B.
Call for pricing
5SZ/500x315.B/T4
500x315 330x315 500x145 SZ T4 B.
Call for pricing
5SZ/500x400.B/T4
500x400 330x400 500x230 SZ T4 B.
Call for pricing
5SZ/500x500.B/T4
500x500 330x500 500x330 SZ T4 B.
Call for pricing
5SZ/200x200.B/T5
200x200 70x200 200x70 SZ T5 B.
Call for pricing
5SZ/250x200.B/T5
250x200 120x200 250x70 SZ T5 B.
Call for pricing
5SZ/250x250.B/T5
250x250 120x250 250x120 SZ T5 B.
Call for pricing
5SZ/315x200.B/T5
315x200 165x200 315x50 SZ T5 B.
Call for pricing
5SZ/315x250.B/T5
315x250 165x250 315x100 SZ T5 B.
Call for pricing
5SZ/315x315.B/T5
315x315 165x315 315x165 SZ T5 B.
Call for pricing
5SZ/400x200.B/T5
400x200 250x200 400x50 SZ T5 B.
Call for pricing
5SZ/400x250.B/T5
400x250 250x250 400x100 SZ T5 B.
Call for pricing
5SZ/400x315.B/T5
400x315 250x315 400x165 SZ T5 B.
Call for pricing
5SZ/400x400.B/T5
400x400 250x400 400x250 SZ T5 B.
Call for pricing
5SZ/500x250.B/T5
500x250 330x250 500x80 SZ T5 B.
Call for pricing
5SZ/500x315.B/T5
500x315 330x315 500x145 SZ T5 B.
Call for pricing
5SZ/500x400.B/T5
500x400 330x400 500x230 SZ T5 B.
Call for pricing
5SZ/500x500.B/T5
500x500 330x500 500x330 SZ T4 B.
Call for pricing

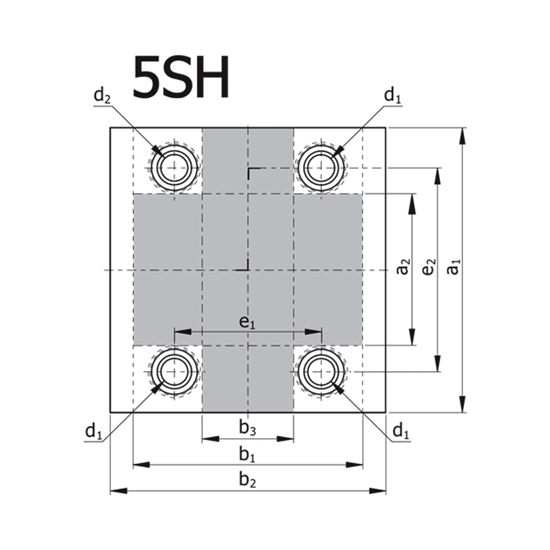

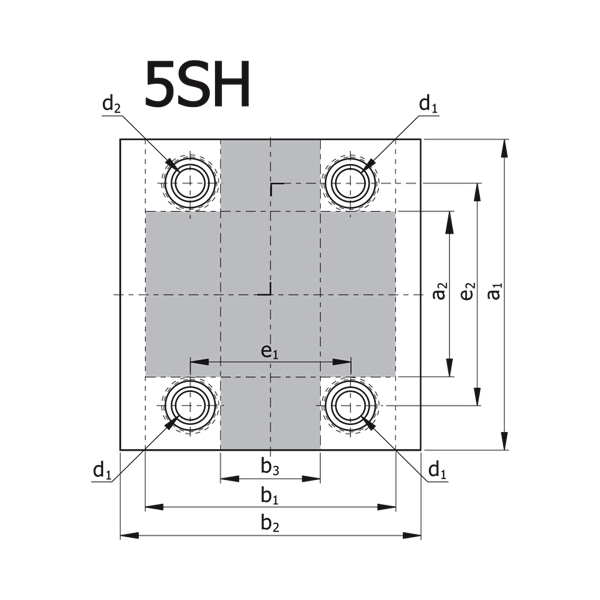

5SH/200x200.B/T4
200x200 70x200 200x70 SH T4 B.
Call for pricing
5SH/250x200.B/T4
250x200 120x200 250x70 SH T4 B.
Call for pricing
5SH/250x250.B/T4
250x250 120x250 250x120 SH T4 B.
Call for pricing
5SH/315x200.B/T4
315x200 165x200 315x50 SH T4 B.
Call for pricing
5SH/315x250.B/T4
315x250 165x250 315x100 SH T4 B.
Call for pricing
5SH/315x315.B/T4
315x315 165x315 315x165 SH T4 B.
Call for pricing
5SH/400x200.B/T4
400x200 250x200 400x50 SH T4 B.
Call for pricing
5SH/400x250.B/T4
400x250 250x250 400x100 SH T4 B.
Call for pricing
5SH/400x315.B/T4
400x315 250x315 400x165 SH T4 B.
Call for pricing
5SH/400x400.B/T4
400x400 250x400 400x250 SH T4 B.
Call for pricing
5SH/500x250.B/T4
500x250 330x250 500x80 SH T4 B.
Call for pricing
5SH/500x315.B/T4
500x315 330x315 500x145 SH T4 B.
Call for pricing
5SH/500x400.B/T4
500x400 330x400 500x230 SH T4 B.
Call for pricing
5SH/500x500.B/T4
500x500 330x500 500x330 SH T4 B.
Call for pricing
5SH/200x200.B/T5
200x200 70x200 200x70 SH T5 B.
Call for pricing
5SH/250x200.B/T5
250x200 120x200 250x70 SH T5 B.
Call for pricing
5SH/315x200.B/T5
315x200 165x200 315x50 SH T5 B.
Call for pricing
5SH/315x250.B/T5
315x250 165x250 315x100 SH T5 B.
Call for pricing
5SH/315x315.B/T5
315x315 165x315 315x165 SH T5 B.
Call for pricing
5SH/400x200.B/T5
400x200 250x200 400x50 SH T5 B.
Call for pricing
5SH/400x250.B/T5
400x250 250x250 400x100 SH T5 B.
Call for pricing
5SH/400x315.B/T5
400x315 250x315 400x165 SH T5 B.
Call for pricing
5SH/400x400.B/T5
400x400 250x400 400x250 SH T5 B.
Call for pricing
5SH/250x250.B/T5
250x250 120x250 250x120 SH T5 B.
Call for pricing
5SH/500x250.B/T5
500x250 330x250 500x80 SH T4 B.
Call for pricing
5SH/500x315.B/T5
500x315 330x315 500x145 SH T4 B.
Call for pricing
5SH/500x400.B/T5
500x400 330x400 500x230 SH T4 B.
Call for pricing
5SH/500x500.B/T5
500x500 330x500 500x330 SH T5 B.
Call for pricing
