Rectangular Die Set CZ

Rectangular Die Set

Product specifications :

● Cast Iron-Diagonal Pillars
● DIN 9819 Shape C and CG
* Different from DIN 9819

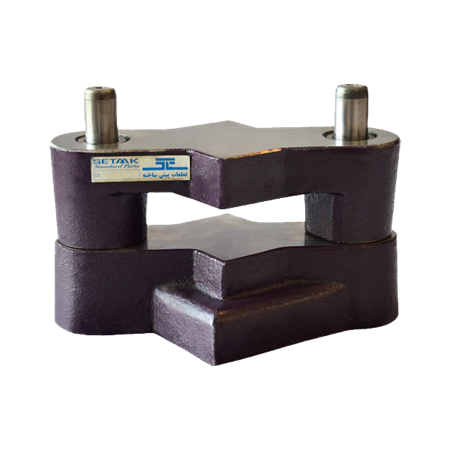

Picture of Rectangular Die Set CZ
Picture of Rectangular Die Set CZ
Picture of Rectangular Die Set CZ
Picture of Rectangular Die Set CZ
Picture of Rectangular Die Set CZ
Title File Size Version Technical Data
فایل سه بعدی CATPart برای کفشک چدنی CZ cz-catpart.rar 1.5 MB پاییز 1401
Technical Data
فایل سه بعدی STP برای کفشک چدنی CZ cz-stp.rar 2.6 MB پاییز 1401
Technical Data

The table below is smart. Use the slider in the first row of each column to find the right product.

Ordering Code Work Area (a1xb1) a2 b2 c1 c2 c3 d2 d3 e1 e2 f l l1 r Price Add to cart Technical Data
CZ01.A/G
80X63 120 103 50 30 *60 20 19 145 121 73 *140 65 27
€62.85
€61.28
CZ02.A/G
100X63 140 103 50 30 *60 20 19 157 121 73 *140 65 27
€65.18
€63.55
CZ15.A/G
315X200 365 250 63 50 100 40 38 436 302 218 224 120 48
€269.46
€262.72
CZ01.A/R
80X63 120 103 50 30 *60 20 19 145 121 73 *140 65 27
€35.11
€34.23
CZ02.A/R
100X63 140 103 50 30 *60 20 19 157 121 73 *140 65 27
€0.00
CZ06.A/R
160X100 200 140 50 40 *80 25 24 229 164 110 160 95 30
€96.95
€94.52
CZ09.A/R
200X125 240 165 56 40 90 32 30 286 204 139 180 95 37
€135.54
€132.15
CZ12.A/R
200X160 240 200 56 50 *90 32 30 312 240 174 *180 95 37
€160.09
€156.09
CZ14.A/R
250X200 300 250 63 50 100 40 38 392 302 218 224 120 48
€229.39
€223.66
CZ15.A/R
315X200 365 250 63 50 100 40 38 436 302 218 224 120 48
€269.46
€262.72
CZ01.B
80X63 120 103 50 30 *60 20 19 145 121 73 *140 65 27
€0.00
CZ02.B
100X63 140 103 50 30 *60 20 19 157 121 73 *140 65 27
€0.00
CZ06.B
160X100 200 140 50 40 *80 25 24 229 164 110 160 95 30
€91.43
€89.14
CZ09.B
200X125 240 165 56 40 90 32 30 286 204 139 180 95 37
€113.88
€111.04
CZ12.B
200X160 240 200 56 50 *90 32 30 312 240 174 *180 95 37
€124.66
€121.55
CZ14.B
250X200 300 250 63 50 100 40 38 392 302 218 224 120 48
€157.90
€153.95
CZ15.B
315X200 365 250 63 50 100 40 38 436 302 218 224 120 48
€195.15
€190.28
CZ06.A/G
160X100 200 140 50 40 *80 25 24 229 164 110 160 95 30
€96.95
€94.52
CZ09.A/G
200X125 240 165 56 40 90 32 30 286 204 139 180 95 37
€135.54
€132.15
CZ12.A/G
200X160 240 200 56 50 *90 32 30 312 240 174 *180 95 37
€160.09
€156.09
CZ14.A/G
250X200 300 250 63 50 100 40 38 392 302 218 224 120 48
€229.39
€223.66
