Smart selection of Gas/Air Ratio Controls

Air Controls

Product specifications :

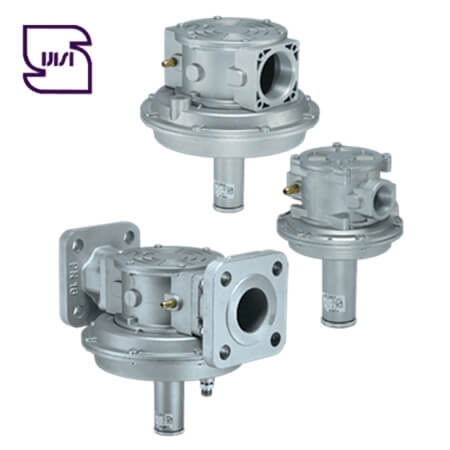

Setaak Air/gas ratio controls are designed in two types SET282 in size DN25 and SET285 in sizes DN40, 50. Air/gas ratio controls with inlet pressure up to 500 mbar are produced in accordance with the national standard of Iran INSO6027-1 in accordance with EN 88-1.
Gas air ratio controls can be used as follows:
1- Zero regulator, keeps the downstream pressure uniform from low to high capacities.
2- Air/gas ratio controls, keeps the air/gas ratio constant even when changing the air pressure.
Based on the pressure ratio, product selection and installation layout should be as follows:
Gas/Air pressure in a ratio of 1:1
Gas/Air pressure from 1:2 ratio to 1:10 ratio (Requires a proportional valve in the air sensor line)
Gas/Air pressure from 2:1 ratio to 10:1 ratio (Requires a proportional valve in the gas sensor line)

Title File Size Version Technical Data
کاتالوگ کنترل های خط گاز مشعل gas-controls.pdf 3.7 MB پاییز 1401
کاتالوگ کنترل نسبت هوا گاز gas-air-control.pdf 1.3 MB تابستان 1402
راهنمای کنترل نسبت هوا گاز SET282 SET282 SET285 DN25،DN40،DN50.pdf 518.6 KB پاییز 1401
