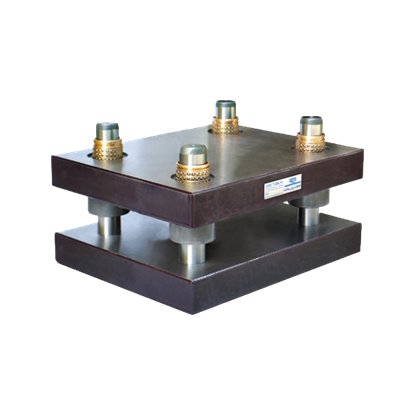

Steel Die Set

  • Die Set Unit 3SU

    ● Plates Materisal: 1.1730
    ● The stamping Die accuracy starts with the Die set and Guide system.
    ● In this drawing has been tried to consider all basic requirements of a progressive Die set for excessive production.
    ● The spacers in the Dies make the Die changing height comfortably in the maintenance and repairing.
    ● The guide pillar with hole reduces inertia in Die that it’s suitable for high speed.

  • All-Steel Die Set 5S...B/T

    ● Plates Material: St37 , St52 , 1.1730
    ● Points:
    - Other plates material, the sizes out of table, guide system, special machining and annealing of plates can be done on request.
    - When the dimensions of the plates are larger than 500mm, the plates are equipped with 2 screw-in lifting studs named E201 in order to have an easy transportation.
    - Regarding the thickness and dimensions of the Plates, more accurate tolerances can be done if requested.
    - Possible to produce and montage your special guide system.
    - Delivery time: 10 to 15 days respectively to dimensions of a1,b1.

  • All-Steel Die Set 3SH

    ● With Stripper - Plates Material: St37, St52, 1.1730
    ● Similar DIN 9868/ISO 11415

    ● Points:
    - Other plates material, the sizes out of table, guide system, special machining and annealing of plates can be done on request.
    - When the dimensions of the plates are larger than 500mm, the plates are equipped with 2 screw-in lifting studs named E201 . in order to have an easy transportation.
    - Regarding the thickness and dimensions of the Plates, more accurate tolerances can be done if requested.
    - Possible to produce and montage your special guide system.

  • All-Steel Die Set 3SM

    ● With Stripper - Plates Material: St37, St52, 1.1730
    ● Similar DIN 9868/ISO 11415

    ● Points:
    - Other plates material, the sizes out of table, guide system, special machining and annealing of plates can be done on request.
    - When the dimensions of the plates are larger than 500mm, the plates are equipped with 2 screw-in lifting studs named E201 . in order to have an easy transportation.
    - Regarding the thickness and dimensions of the Plates, more accurate tolerances can be done if requested.
    - Possible to produce and montage your special guide system.

  • All-Steel Die Set 3SZ

    ● With Stripper - Plates Material: St37, St52, 1.1730
    ● Similar DIN 9868/ISO 11415

    ● Points:
    - Other plates material, the sizes out of table, guide system, special machining and annealing of plates can be done on request.
    - When the dimensions of the plates are larger than 500mm, the plates are equipped with 2 screw-in lifting studs named E201 . in order to have an easy transportation.
    - Regarding the thickness and dimensions of the Plates, more accurate tolerances can be done if requested.
    - Possible to produce and montage your special guide system.

  • All-Steel Die Set 2SH

    ● With Stripper - Plates Material: St37, St52, 1.1730
    ● Similar DIN 9868/ISO 11415

    ● Points:
    - Other plates material, the sizes out of table, guide system, special machining and annealing of plates can be done on request.
    - When the dimensions of the plates are larger than 500mm, the plates are equipped with 2 screw-in lifting studs named E201 . in order to have an easy transportation.
    - Regarding the thickness and dimensions of the Plates, more accurate tolerances can be done if requested.
    - Possible to produce and montage your special guide system.

    ...
  • All-Steel Die Set 2SM

    ● With Stripper - Plates Material: St37, St52, 1.1730
    ● Similar DIN 9868/ISO 11415

    ● Points:
    - Other plates material, the sizes out of table, guide system, special machining and annealing of plates can be done on request.
    - When the dimensions of the plates are larger than 500mm, the plates are equipped with 2 screw-in lifting studs named E201 . in order to have an easy transportation.
    - Regarding the thickness and dimensions of the Plates, more accurate tolerances can be done if requested.
    - Possible to produce and montage your special guide system.

  • All-Steel Die Set 2SR

    ● With Stripper - Plates Material: St37, St52, 1.1730
    ● Similar DIN 9868/ISO 11415

    ● Points:
    - Other plates material, the sizes out of table, guide system, special machining and annealing of plates can be done on request.
    - When the dimensions of the plates are larger than 500mm, the plates are equipped with 2 screw-in lifting studs named E201 . in order to have an easy transportation.
    - Regarding the thickness and dimensions of the Plates, more accurate tolerances can be done if requested.
    - Possible to produce and montage your special guide system.

  • All-Steel Die Set 2SZ

    ● With Stripper - Plates Material: St37, St52, 1.1730
    ● Similar DIN 9868/ISO 11415

    ● Points:
    - Other plates material, the sizes out of table, guide system, special machining and annealing of plates can be done on request.
    - When the dimensions of the plates are larger than 500mm, the plates are equipped with 2 screw-in lifting studs named E201 . in order to have an easy transportation.
    - Regarding the thickness and dimensions of the Plates, more accurate tolerances can be done if requested.
    - Possible to produce and montage your special guide system.

  • Plate SP

    ● Material: St 37 , St 52 , 1.1730
    ● Special machining of plates can be done on request.

  • All-Steel Die Set S

    ● Without Stripper - Plates Material: St 37 , St 52 , 1.1730
    ● Points :
    - Special Die Sets with more guide system can be made on request.
    - more specifications of guide system .

  • Rectangular All-Steel Die Set HR

    ● Plates Material: St 37
    ● Heavy Type
    ● Points:
    - H-Die Set structure is according to E-Die Set but thicker plates,increased guide systems diameter and using guide bush D016 .
    - Steel Die Sets can be done in various shapes and sizes on request.
    - Suitable Altemative for Cast Iron Diesets.

    ...
  • Rectangular All-Steel Die Set HM

    ● Plates Material: St 37
    ● Heavy Type
    - HM-Die Set is made with thicker plates,increased guide systems diameter and using guide bush D016 .
    - Steel Die Sets can be done in various shapes and sizes on request.
    - Suitable Altemative for Cast Iron Diesets.

    ...
  • Rectangular All-Steel Die Set ER

    ● Plates Material: St 37
    ● Points :
    Advantages:
    - Reasonable prices.
    - suitable strength in compairison with thin cast iron.
    - sjort height (suitable for presses with small mounth).
    - Steel Die Sets can be done in various sjapes and size on request.

    ...
  • CIRCULAR All-Steel Die Set EU

    ● Plates Material: St 37
    ● Advantages :
    - Reasonable prices.
    - suitable strength in compairison with thin cast iron.
    - sjort height (suitable for presses with small mounth).
    - Steel Die Sets can be done in various sjapes and size on request.
    -CNC cutting can be done on request.

    ...
