Bolt, Nut, Washer

  • BOLT FOR T-SLOT E405

    ● DIN 787
    ● M8-M12 strength class 10.9
    ● M14-M30 strength class 8.8
    ● Rolled thread.

    ...
  • STUD E406

    ● DIN 6379
    ● M8-M12 strength class 10.9
    ● M14-M30 strength class 8.8
    ● NOTE: 1x dia. of thread should match with nut.

    ...
  • T NUT E407

    ● DIN 508
    ● Tensile strength class 10.
    ● Full load capacity is only allowod with the full thread length matched.
    * Use the length of the thread.
    ** Excess of Din508

    ...
  • T NUT (RHOMBUS) E408

    ● DIN 508
    ● Tensile strength class 10.
    ● Full load capacity is only allowod with the full thread length matched.

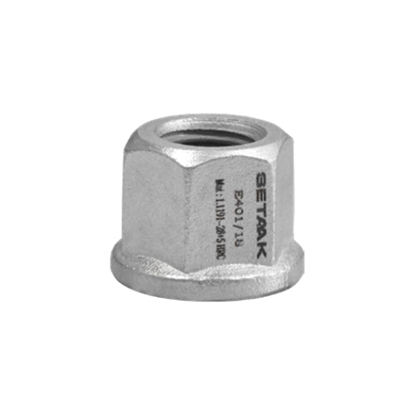

  • COLLAR NUT E401

    ● Material: Forged, Turned, Heat-Treated Steel
    ● DIN 6331
    ● Height 1.5 dia.
    ● Tensile strength class 10.
    * Different from DIN 6331

    ...

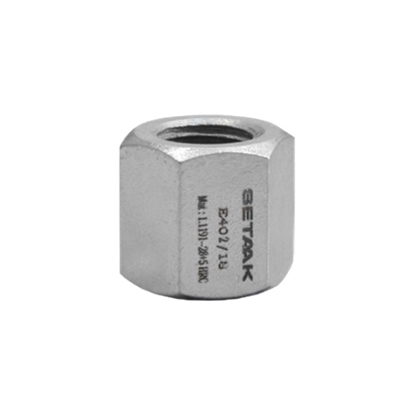

  • HEXAGON NUT E402

    ● Material: Forged, Turned, Heat-Treated Steel
    ● DIN 6330B
    ● Height 1.5 dia.
    ● Tensile strength class 10.

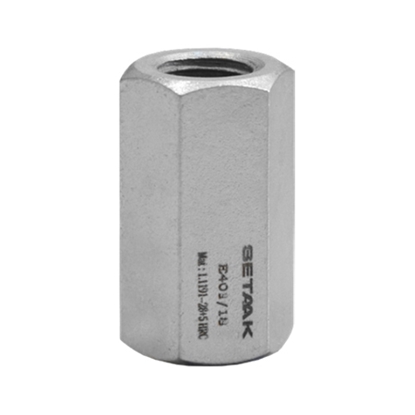

  • EXTENSION NUT E403

    ● Material: Forged, Turned, Heat-Treated Steel
    ● DIN 6334
    ● Height 3 dia.
    ● Tensile strength class 10.

    ...

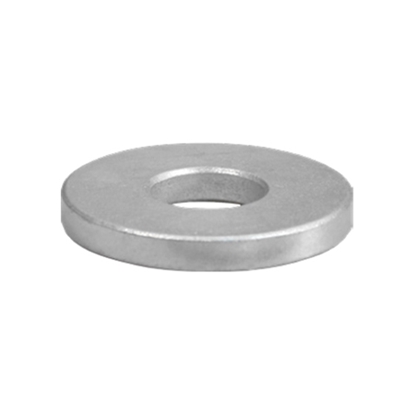

  • WASHER E404

    ● Material: Turned, Heat-Treated Steel
    ● DIN 6340

    ...

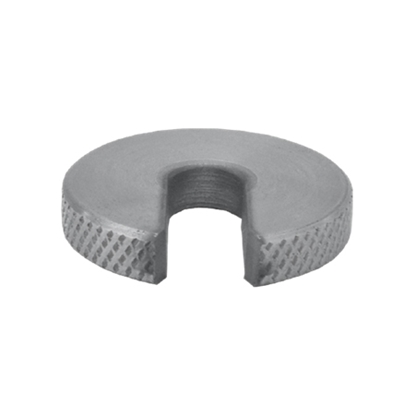

  • C WASHER E411

    ● Material: Turned, Heat-Treated Steel

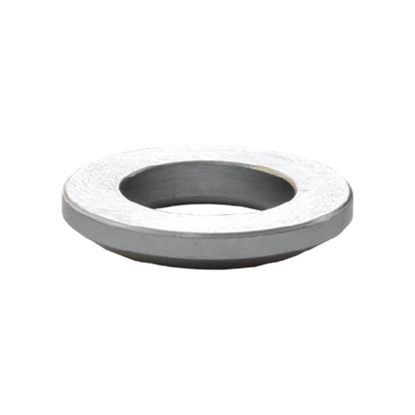

  • SPHERICAL SEAT WASHER E412

    ● Material: Turned, Heat-Treated Steel
    ● DIN 6319C

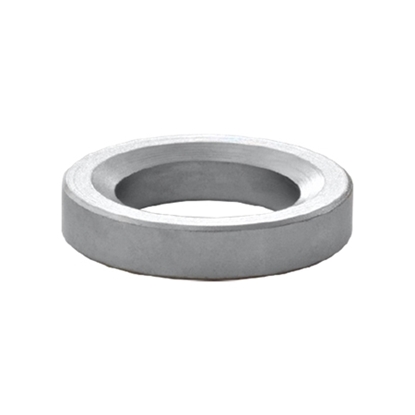

  • INTERNAL CONIC WASHER 413

    ● Material: Turned, Heat-Treated Steel
    ● DIN 6319D
