Punches, Matrix, Dowel Pins, Ejectors

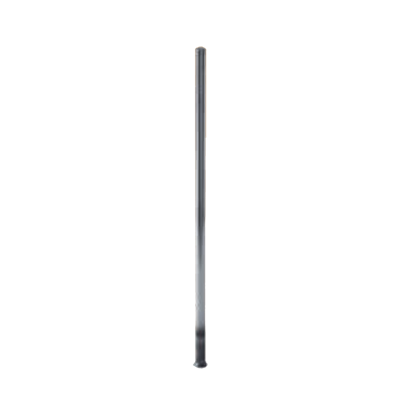

  • Economic Ejector Pin-Conical head D42E

    ● Material : Steel-hardend
    ● WS ; Alloy tool steel
    - Material No: 1.2210, 1.2516, 1.2842 or Similar. Characteristics: Hard and tough tool steel, medium wear resistance.
    - Application Field: Ejectors and inserts for injection moulds and piercing/blanking dies for mild steels, low carbon steels, non-ferrous metals, plastics and paper

    ...

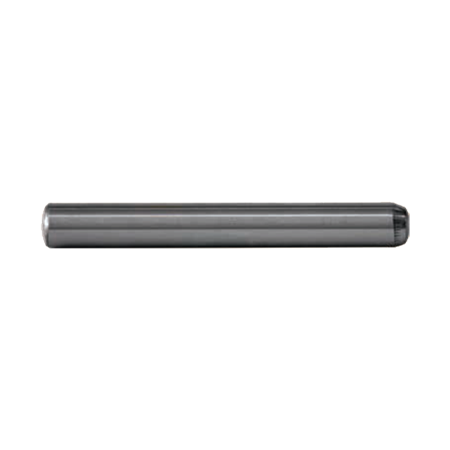

  • Dowel Pin D25

    ● DIN EN 28734/ISO 8734-A
    ● Hardness 60±2 HRC

    ...

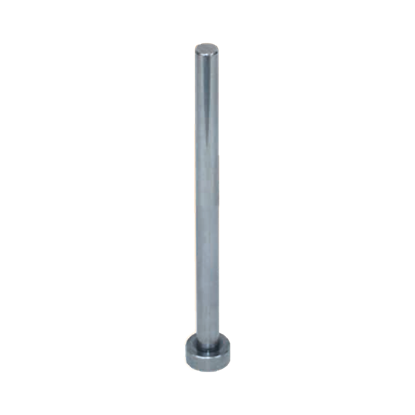

  • Precision Punch D220

    ● DIN 9844
    ● Material : HSS , HST

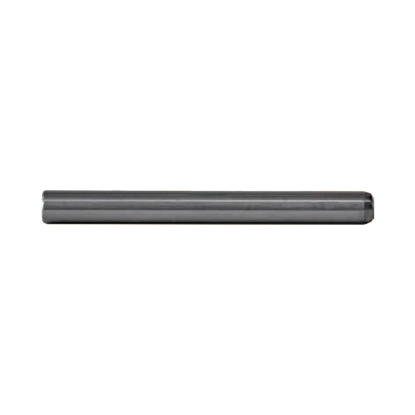

  • Dowel Pin with Internal Extracting Thread D26

    ● DIN EN 28735/ISO 8735-A
    ● Hardness 60±2 HRC

    ...

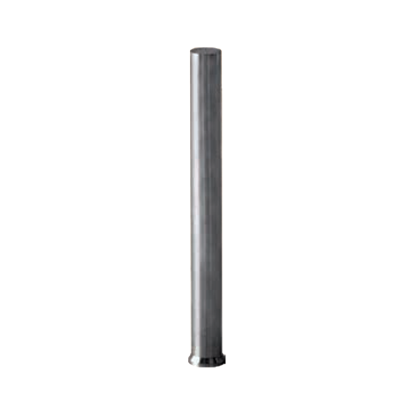

  • Precision Punch D223

    ● DIN 9861
    ● Material :ASP 23 , HWS , HSS
    ● Head hot upset-forged and tempered
    ● In D222,D224 punches residual upset bulge below head normally much smaller than permissible acc. to DIN 9861.
    ● In D223,D225 punches shank and head subsequently precision plunge ground for perfect Concentricity and full interchangeability with replacment punches.

    ...

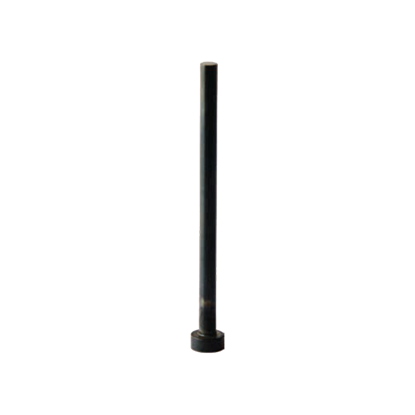

  • Ejector Pin-Cylindrical Head D41K

    ● DIN 1530 - ISO 6751
    ● Material: WAS(Hot Working Steel Nitrided)
    ● Plasma - Nitrided Black Oxidized

    ...

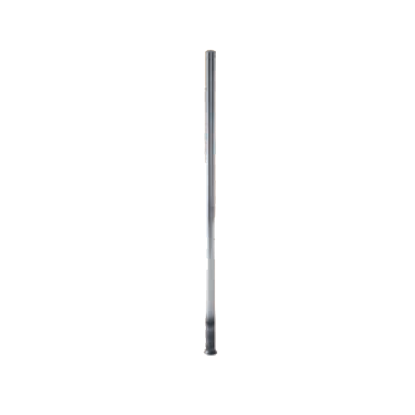

  • Ejector Pin-Cylindrical Head D41B

    ● DIN 1530 - ISO 6751
    ● Material: WAS(Hot Working Steel Nitrided)
    ● Plasma - Nitrided Bright Surface

    ...
  • Dowel Pin Extractor D251

    ● Extraction tool for the fast removal of dowels with internal extracting thread and also for shafts , plugs and other machine components.The tool comes interchangeable adaptors and screws, to fit all threads from M4 to M16.

    ...

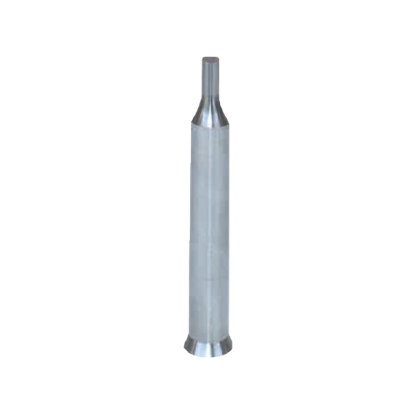

  • Precision Punch D225

    ● DIN 9861
    ● Material :WS , HWS , HSS

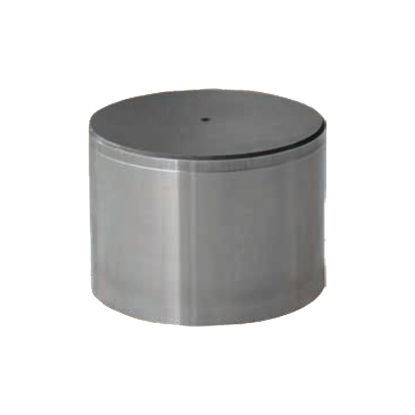

  • Matrix Without Collar D267

    ● Material : HSS
    ● ISO 8977
    ● Description:
    - Possibility of producing all sizes and shapes.d1 hole has been created for wire-cut pass.

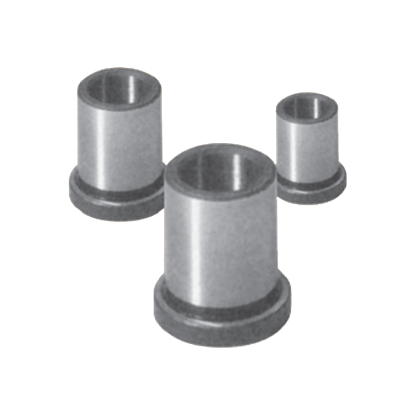

  • Drill Bush With Collar D276

    ● Material : Special Steel
    ● 740±40HV 10
    ● DIN 172

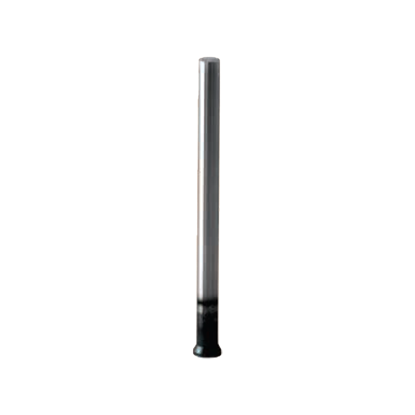

  • Economic Punch D222E

    ● Material :WS , Hardened

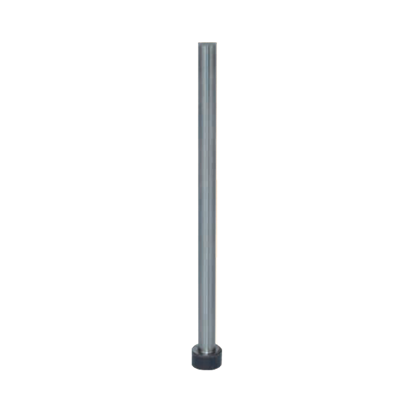

  • Precision Punch D226

    ● ISO 8020
    ● Material : HSS , HWS

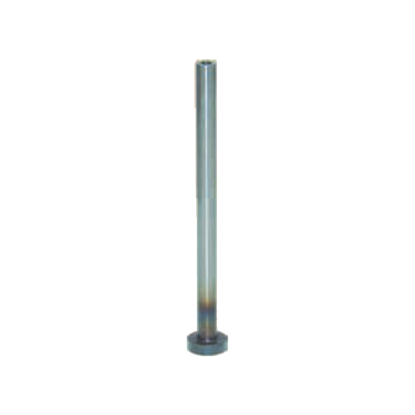

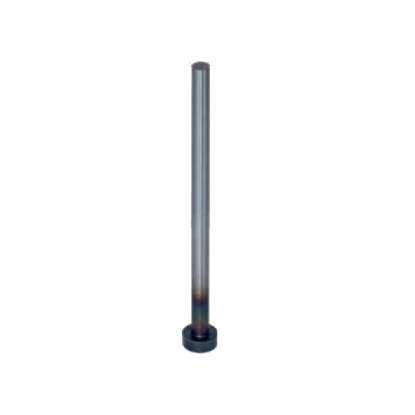

  • Ejector Sleeves-Cylindrical Head D405

    ● WS (Alloyed Cold Working Steel - Hardend)

    ...

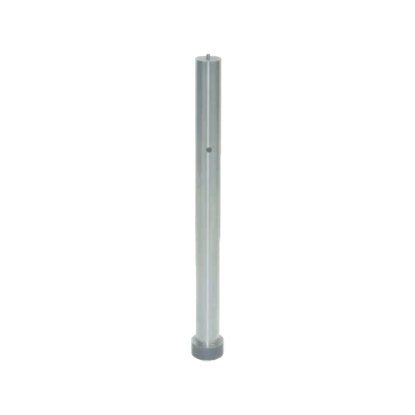

  • Precision Punch D228

    ● ISO 8020
    ● Material : HSS

  • Matrix With Collar D266

    ● Material : HSS
    ● ISO 8977
    ● Description:
    - Possibility of producing all sizes and shapes.d1 hole has been created for wire-cut pass.

    ...
