Guide Pillar For Large Tools D022

● Material : Steel, Surface Hardened
● DIN 9833/ISO 9182-3
● Surface hardness: 60+2 HRC.
● Hardness penetration depth: 1.5 mm.
● Up to fd1=80 without central hole.
● By fd1=80 with 1 lifting thread M12 .
● From fd1=100 with central hole(through) and with 2 lifting threads M12 .
● The guide pillar is only recommended in use with solid lubricants. (D046 , D043 ).

Guide Pillar With Collar D029

● Material : Steel, Surface Hardened
● Surface hardness: 60+2 HRC.
● Hardness penetration depth: 1.5 mm.
● The guide pillar is only recommended in use with solid lubricants. (D046 , D043 ).

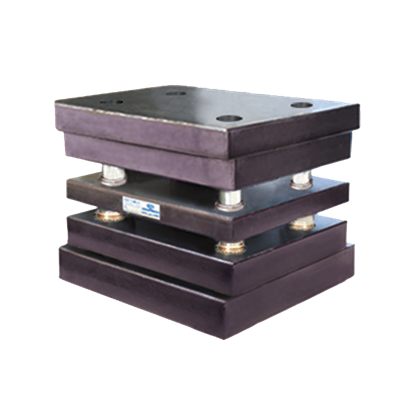

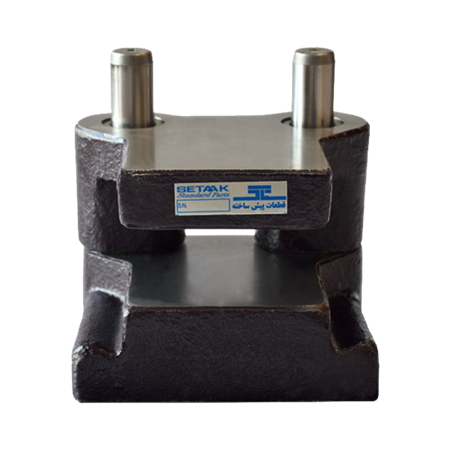

Die Set Unit 3SU

● Plates Materisal: 1.1730
● The stamping Die accuracy starts with the Die set and Guide system.
● In this drawing has been tried to consider all basic requirements of a progressive Die set for excessive production.
● The spacers in the Dies make the Die changing height comfortably in the maintenance and repairing.
● The guide pillar with hole reduces inertia in Die that it’s suitable for high speed.

Guide Bush D014

● For Slip Bonding
● Material :~1.7131 , 720HV
● DIN 9831/ISO 9448-2

...

Guide Bush D016

● Headed Guide Bush - For Slip Bonding
● Material:~1.7131,720HV

...

Guide Bush D017

● Headed Guide Bush - Fit Mounted
● Similar to DIN 9831 / ISO 9448-7

...

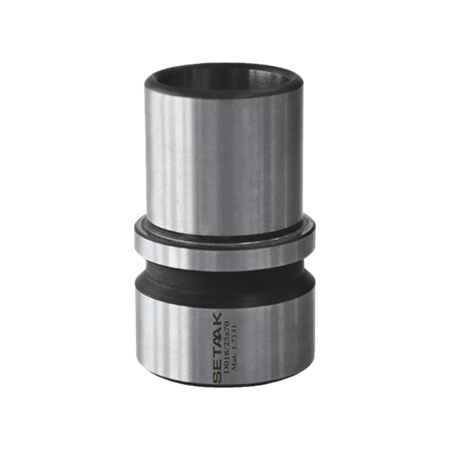

Guide Bush D018

● Headed Guide Bush - Fit Mounted

...

Disc(Guide Pillar) E363

● d1 is the diameter of disc.

Guide System D124

● This product consists of Ball Cage D141-3 , Guide Bush Model D017 , Guide Pillar Model D013 which must be prepared separately.
● Producing on request.

Guide System D133

● This product consists of Ball Cage D141-3 , Guide Bush Model D018 , Guide Pillar Model D013 , Guide Pillar Model D028 which must be prepared separately.

Guide System D134

● This product consists of Ball Cage D141-3 , Guide Bush Model D014 , Guide Pillar Model D013 which must be prepared separately.

Guide System D137

● This product consists of Ball Cage D141-3 , Guide Bush Model D017 , Guide Pillar Model D013 which must be prepared separately.

Guide System D138

● This product consists of Ball Cage D141-3 , Guide Bush Model D016 , Guide Pillar Model D013 which must be prepared separately.

Guide System D139

● This product consists of Ball Cage D141-3 , Guide Bush Model D017 , Guide Pillar Model D028 which must be prepared separately.

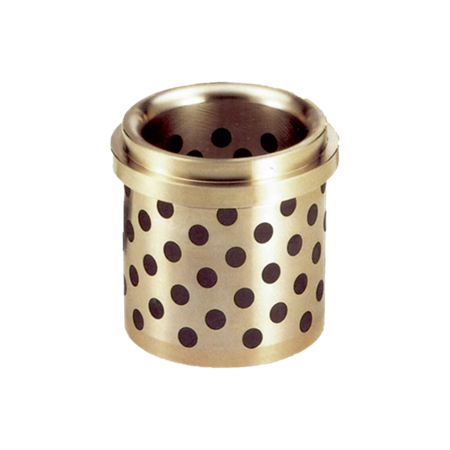

Sliding Pad D061

● Non-Liquid Lubricant
● Material: Bronze/Cast Iron
● Are used in applications of linear or rotary motion in tool making, and similar engineering uses.
● Advantages of oilless guide elements:
- Good emergency sliding properties.
- Highest carrying capacity at low speed.
- Useable under water or with chemical solutions.
- Extremely wide temperature resistance hot and cold.
- Damping properties in presence of vibration.
