Guide System
-

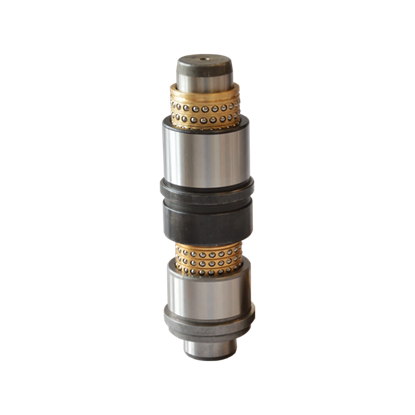

Guide System D124
● This product consists of Ball Cage D141-3 , Guide Bush Model D017 , Guide Pillar Model D013 which must be prepared separately.
● Producing on request. -
Guide System D132
● Material: Cast Iron
● With Rectangular Flange
● This product consists of
Guide Bush Flange Model D130
Guide Pillar Flange Model D131
Guide Pillar Model D013
Guide Bush Model D014... -

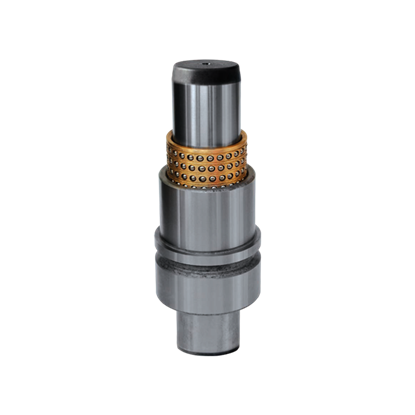

Guide System D133
● This product consists of Ball Cage D141-3 , Guide Bush Model D018 , Guide Pillar Model D013 , Guide Pillar Model D028 which must be prepared separately.
-

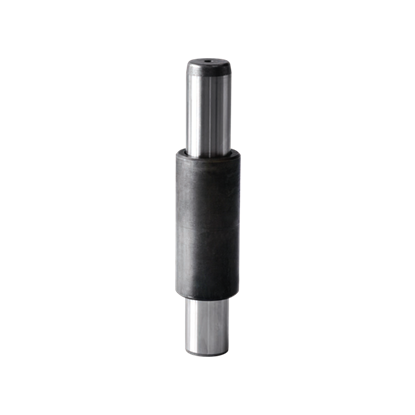

Guide System D134
● This product consists of Ball Cage D141-3 , Guide Bush Model D014 , Guide Pillar Model D013 which must be prepared separately.
-
Guide System D136
● With Rectangular Flange
● This product consists of
Guide Bush Flange Model D127
Guide Pillar Flange Model D126
Guide Pillar Model D013
Guide Bush Model D014 -

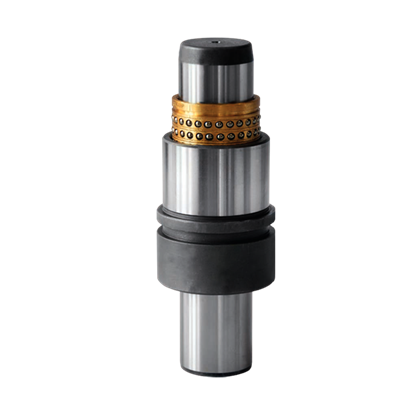

Guide System D137
● This product consists of Ball Cage D141-3 , Guide Bush Model D017 , Guide Pillar Model D013 which must be prepared separately.
-

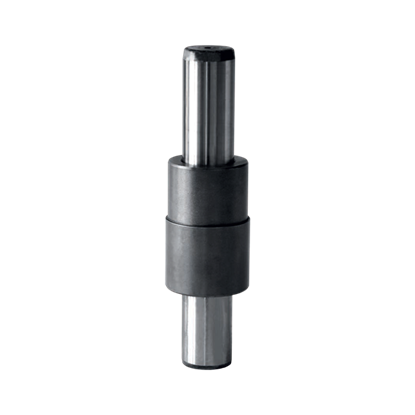

Guide System D138
● This product consists of Ball Cage D141-3 , Guide Bush Model D016 , Guide Pillar Model D013 which must be prepared separately.
-

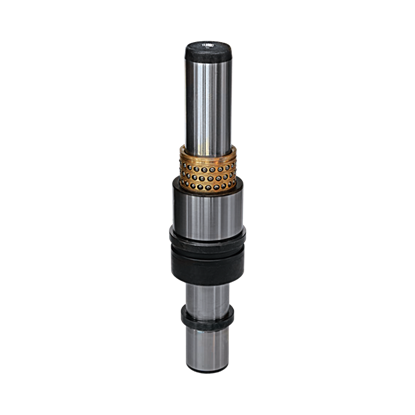

Guide System D139
● This product consists of Ball Cage D141-3 , Guide Bush Model D017 , Guide Pillar Model D028 which must be prepared separately.
-
Guide Pillar D0131
● Material:~1.7131 / 720HV
● Similar to DIN 9825 / ISO 9182-2
● Easy replacement and disassembly, installation. -
Guide Pillar For Large Tools D022
● Material : Steel, Surface Hardened
● DIN 9833/ISO 9182-3
● Surface hardness: 60+2 HRC.
● Hardness penetration depth: 1.5 mm.
● Up to fd1=80 without central hole.
● By fd1=80 with 1 lifting thread M12 .
● From fd1=100 with central hole(through) and with 2 lifting threads M12 .
● The guide pillar is only recommended in use with solid lubricants. (D046 , D043 ).
