Hot Nozzle System

  • Gate Valve (Pneumatic) D566

    ● Needle valve systems are an important tool in controlling the hot injection process. These valves give outstanding features to the produced parts and process by opening and closing the nozzle inlet. Some of the features of this system are:
    1- Ensure that unwanted material does not overflow into the cavity
    2- Disconnect the material inside the nozzle from the part
    3- Ability to achieve higher quality parts of the piece.
    4- More hiding the effect of the injection.
    5- Ability to eliminate cold welding in large parts that are filled with several nozzles.
    6- Achieving the desired quality for large and complex parts with the possibility of selecting the order and creating sequences in opening and closing the nozzles.
    7- Reduce injection pressure
    8- Reduce injection time

  • FILTER D563

    ● Material: 1.2344/42±2HRC

  • Raha Series Nozzle D5368

    ● Body Material: WAS (Hot Working Steel Nitrided)
    - Core material can be changed on request.

    ...
  • Raha Series Nozzle D5369

    ● Body Material: WAS (Hot Working Steel Nitrided)
    - Core material can be changed on request.

    ...

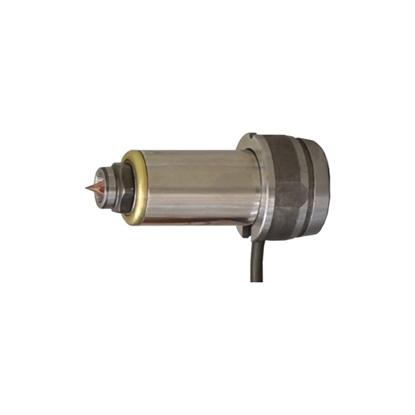

  • Raha Series Nozzle D5378

    ● Body Material: WAS (Hot Working Steel Nitrided)
    - Core material can be changed on request.

    ...

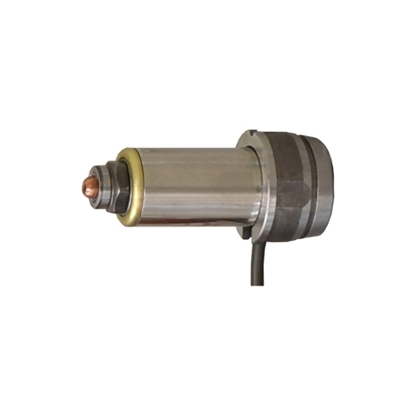

  • Raha 536 Series Nozzle D5379

    ● Body Material: WAS (Hot Working Steel Nitrided)
    - Core material can be changed on request.

    ...

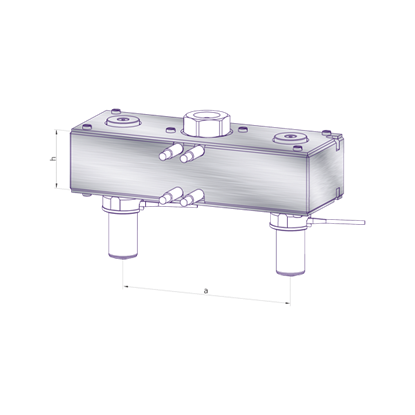

  • Manifold Block H52401

    ● Material: 1.2312
    ● Features and Benefits:
    1 ) The symmetrical design with the equal length run of injection from the main runner to each of the cavity, even in linear arrangement or with a high cavity number.
    2 ) Optimal placement on the input and output of thermal elements to allow them to securely insert them.
    3 ) Uniform heat distribution in the Manifold block, measurement and temperature control in the depth of block.
    4 ) Applying new and optimal methods for blocking and changing the material path with high reliability.
    5 ) Close interaction of SETAAK with the customer to reach the best design.

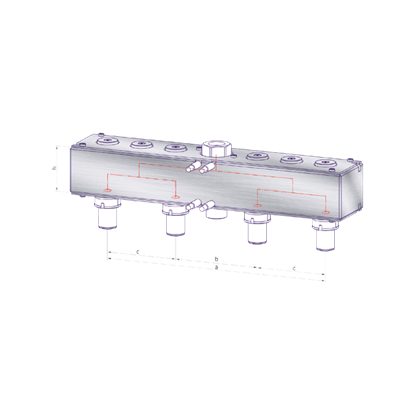

  • Manifold Block H52411

    ● Material: 1.2312
    ● Features and Benefits:
    1 ) The symmetrical design with the equal length run of injection from the main runner to each of the cavity, even in linear arrangement or with a high cavity number.
    2 ) Optimal placement on the input and output of thermal elements to allow them to securely insert them.
    3 ) Uniform heat distribution in the Manifold block, measurement and temperature control in the depth of block.
    4 ) Applying new and optimal methods for blocking and changing the material path with high reliability.
    5 ) Close interaction of SETAAK with the customer to reach the best design.
    ● Note: Minimum distance c is d in D537.

  • FILTER D564

    ● Material: 1.2344/42±2HRC

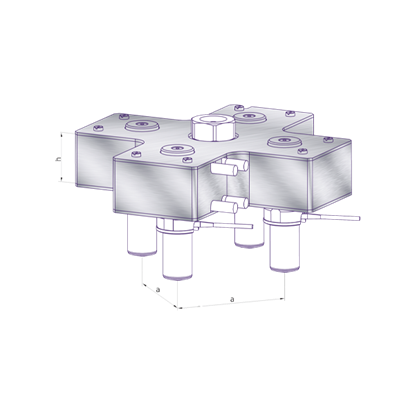

  • Manifold Block H52402

    ● Material: 1.2312
    ● Features and Benefits:
    1 ) The symmetrical design with the equal length run of injection from the main runner to each of the cavity, even in linear arrangement or with a high cavity number.
    2 ) Optimal placement on the input and output of thermal elements to allow them to securely insert them.
    3 ) Uniform heat distribution in the Manifold block, measurement and temperature control in the depth of block.
    4 ) Applying new and optimal methods for blocking and changing the material path with high reliability.
    5 ) Close interaction of SETAAK with the customer to reach the best design.

  • Transfer Bushing D561

    ● Material:1.2344/50±2HRC

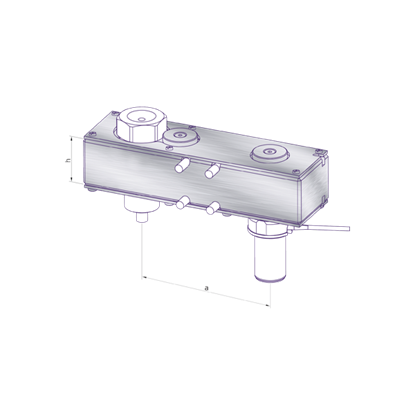

  • CENTER TRANSFER BLOCK H52410

    ● Material: 1.2312
    ● Features and Benefits:
    1 ) The symmetrical design with the equal length run of injection from the main runner to each of the cavity, even in linear arrangement or with a high cavity number.
    2 ) Optimal placement on the input and output of thermal elements to allow them to securely insert them.
    3 ) Uniform heat distribution in the Manifold block, measurement and temperature control in the depth of block.
    4 ) Applying new and optimal methods for blocking and changing the material path with high reliability.
    5 ) Close interaction of SETAAK with the customer to reach the best design.

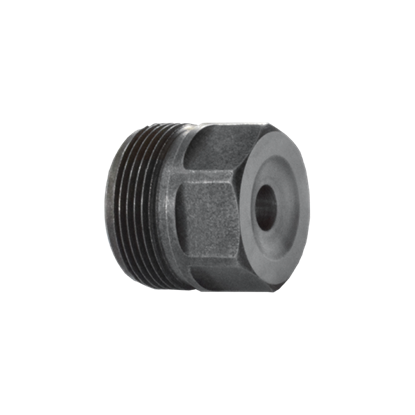

  • Transfer Bushing D562

    ● Material:1.2344/50±2HRC
    * Customer R can be changed if needed.

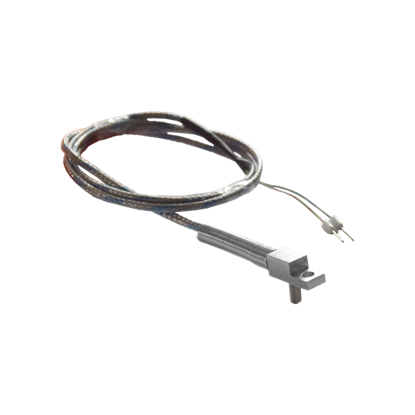

  • Thermocouple T524

    ● Type J , Fe-CuNi

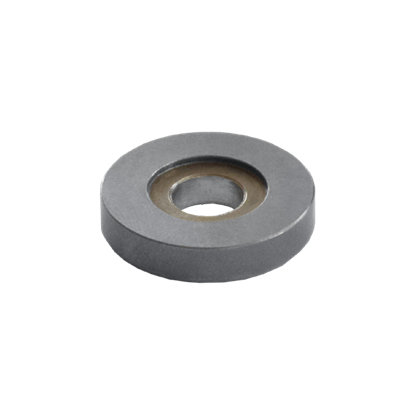

  • Spacer Washer D552

    ● Material: 3.7165 / 250HB / λ:7.1 W/mK
    ● Material: 1.1191 / 45±2HRC / λ:15.1 W/mK

  • Spacer Washer D553

    ● Material: 3.7165 / 250HB / λ:7.1 W/mK
    ● Material: 1.1191 / 45±2HRC / λ:15.1 W/mK

    ...
  • Temperature Controler C04

    ● Zone quantity : 1 to 36
    ● Temperature controle range : 0 - 450°C
    ● Output power per zone : 3 KW
    ● Thermocouple type : J,K
    ● Control Type : PID
    ● Having an interface card (Interface) with special design to prevent burn.
    ● Warning notification in case of incorrect wiring connection, instead of burning the thermocouple, as in the old controller.
    ● Ability to assign numbers to any modules of the controller.
    ● Using various symbols to state the status of each module for user comfort (user friendly).
    ● LCD display with the ability to adjust the color and intensity of light.

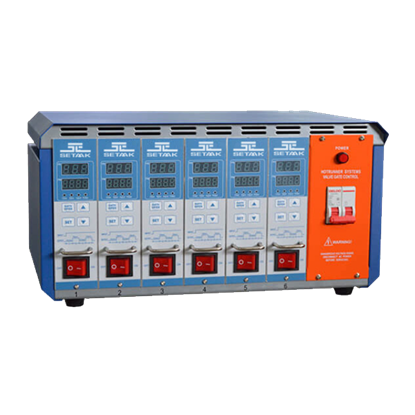

  • INJECTION SEQUENCE CONTROLER SCO7

    ● Zone Number : 1 to 24
    ● Control Function: Auto/Manual
    ● Time Range: 0.0-999.9 s / 0.00-99.99 s

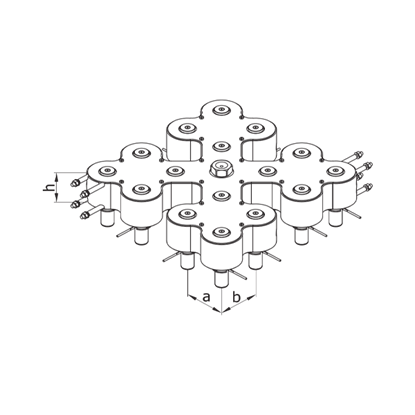

  • Manifold Block Model H52409

    ● Material: 1.2312
