Click on the desired product.

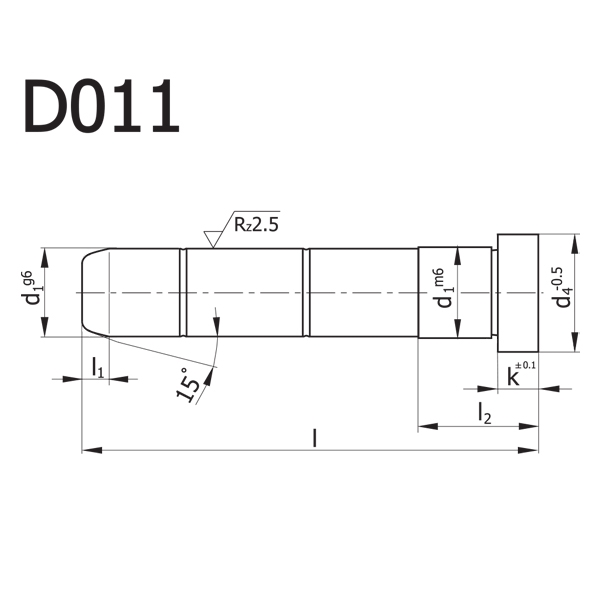

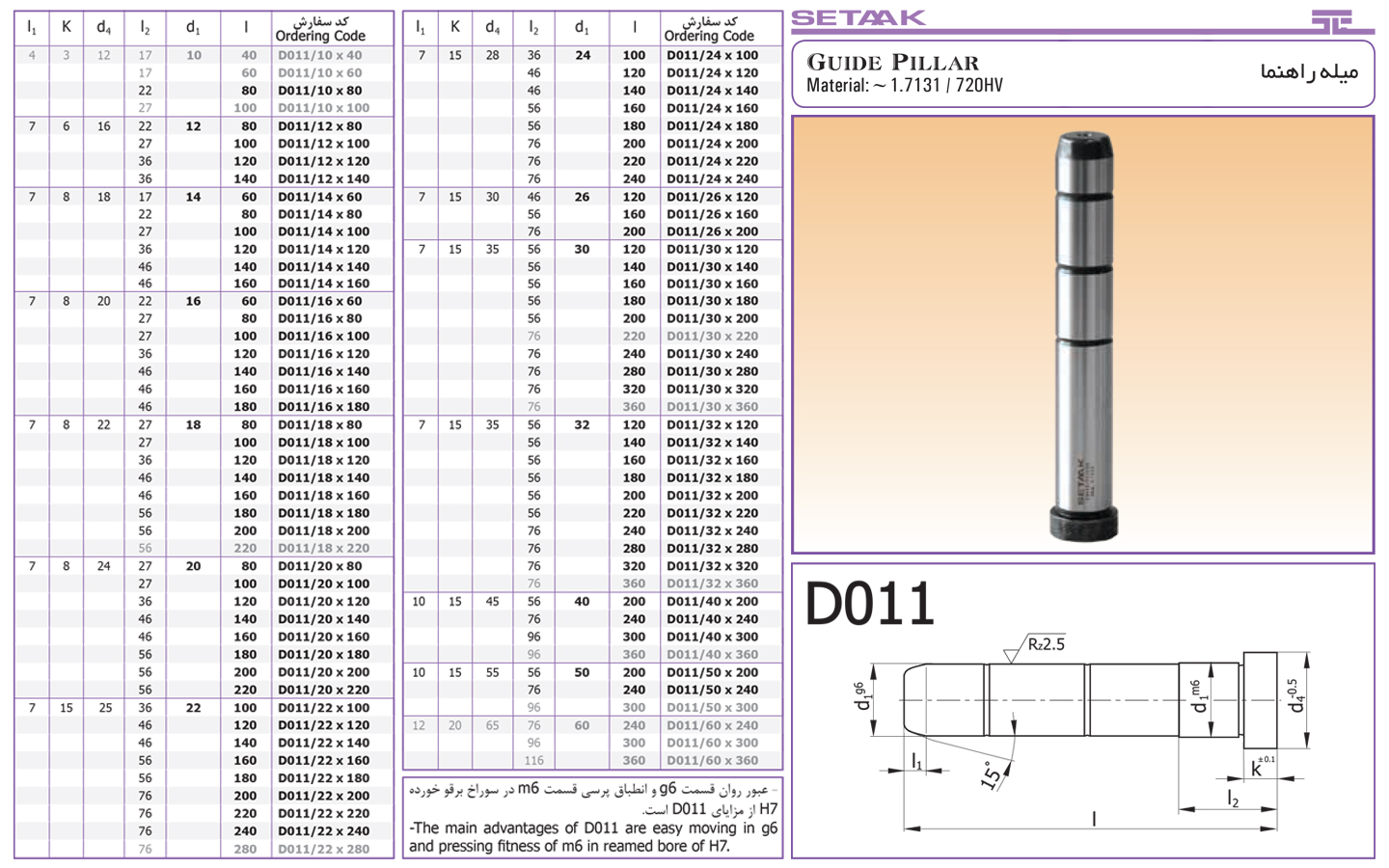

● Material : ~ 1.7131 | 720HV ● The main advantages of D011 are easy moving in g6 and pressing fitness of m6 in reamed bore of H7.
● Material : ~ 1.7131 | 720HV
● Material : ~ 1.7131 | 720HV ● Advantage : - Easy installation. - With using socket set screw D35, no need for machining of behind the holder.
● Material : ~ 1.7131 | 720HV ● DIN 16761-B
● Material : ~ 1.7131 | 720HV ● DIN 16761-A
● Material:~1.7131 / 720HV ● Similar to DIN 9825 / ISO 9182-2 ● Easy replacement and disassembly, installation.
● Material : Steel, Surface Hardened ● DIN 9833/ISO 9182-3 ● Surface hardness: 60+2 HRC. ● Hardness penetration depth: 1.5 mm. ● Up to fd1=80 without central hole. ● By fd1=80 with 1 lifting thread M12 . ● From fd1=100 with central hole(through) and with 2 lifting threads M12 . ● The guide pillar is only recommended in use with solid lubricants. (D046 , D043 ).
● Stripper-Mounted Pillars ● Material: Steel, Surface Hardened
● With Collar ● Material: Steel, Surface Hardened
● Special for Texture Machineries ● Producing on request.
