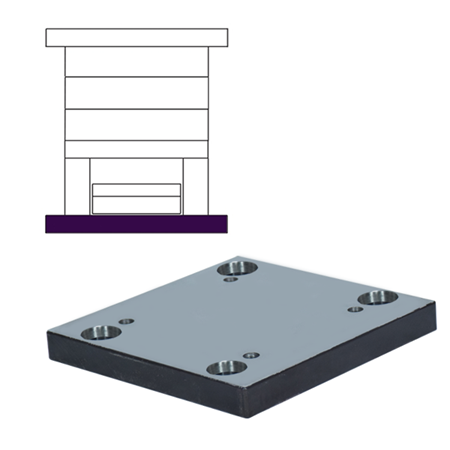

Plate F96

Name: Setaak
Address: isfahan, IR
Telephone: +9831 3386 3430

Product specifications :

● Materiyal:1.0037

Attachments

The table below is smart. Use the slider in the first row of each column to find the right product.

Ordering Code	Dim. Code	a	b1	C	e1	e2	e3	d3	Material	Price
F96/1616/22#1.0037	1616	196	156	22	122	122	72	20	1.0037	€0.00
F96/1620/22#1.0037	1620	196	196	22	122	162	106	20	1.0037	€0.00
F96/1625/22#1.0037	1625	196	246	22	122	212	162	20	1.0037	€0.00
F96/1630/27#1.0037	1630	196	296	27	122	262	212	20	1.0037	€0.00
F96/2020/22#1.0037	2020	246	196	22	154	152	100	26	1.0037	€0.00
F96/2025/22#1.0037	2025	246	246	27	154	202	150	26	1.0037	€0.00
F96/2030/27#1.0037	2030	246	296	27	154	252	196	26	1.0037	€0.00
F96/2035/27#1.0037	2035	246	346	27	154	302	246	26	1.0037	€0.00
F96/2040/27#1.0037	2040	246	396	27	154	352	296	26	1.0037	€0.00
F96/2225/22#1.0037	2225	268	246	22	176	202	146	26	1.0037	€0.00
F96/2230/27#1.0037	2230	268	296	27	170	244	180	30	1.0037	€0.00
F96/2525/27#1.0037	2525	296	246	27	198	194	130	30	1.0037	€0.00
F96/2530/27#1.0037	2530	296	296	27	170	244	180	30	1.0037	€0.00
F96/2535/27#1.0037	2535	296	346	27	198	294	230	30	1.0037	€0.00
F96/2540/27#1.0037	2540	296	396	27	170	344	280	30	1.0037	€0.00
F96/2545/36#1.0037	2545	296	446	36	170	394	330	30	1.0037	€0.00
F96/2550/36#1.0037	2550	296	496	36	170	444	380	30	1.0037	€0.00
F96/3030/27#1.0037	3030	346	296	27	248	244	180	30	1.0037	€0.00
F96/3035/27#1.0037	3035	346	346	27	248	294	230	30	1.0037	€0.00
F96/3040/27#1.0037	3040	346	396	27	248	344	280	30	1.0037	€0.00
F96/3045/36#1.0037	3045	346	446	36	248	394	330	30	1.0037	€0.00
F96/3050/36#1.0037	3050	346	496	36	248	444	380	30	1.0037	€0.00
F96/3055/36#1.0037	3055	346	546	36	248	494	430	30	1.0037	€0.00
F96/3060/36#1.0037	3060	346	596	36	248	544	480	30	1.0037	€0.00
F96/3070/36#1.0037	3070	346	696	36	224	624	530	42	1.0037	€0.00
F96/3535/27#1.0037	3535	396	346	27	286	286	182	42	1.0037	€0.00
F96/3540/27#1.0037	3540	396	396	27	274	324	230	30	1.0037	€0.00
F96/3545/27#1.0037	3545	396	446	27	274	374	280	42	1.0037	€0.00
F96/3550/27#1.0037	3550	396	496	27	274	424	330	42	1.0037	€0.00
F96/3555/36#1.0037	3555	396	546	36	274	474	380	42	1.0037	€0.00
F96/3560/36#1.0037	3560	396	596	36	274	524	430	42	1.0037	€0.00
F96/3570/36#1.0037	3570	416	696	36	274	624	530	42	1.0037	€0.00
F96/3580/46#1.0037	3580	416	796	46	274	724	630	42	1.0037	€0.00
F96/4040/36#1.0037	4040	446	396	36	324	324	230	42	1.0037	€0.00
F96/4045/36#1.0037	4045	446	446	36	324	374	280	42	1.0037	€0.00
F96/4050/36#1.0037	4050	446	496	36	324	424	330	42	1.0037	€0.00
F96/4055/36#1.0037	4055	446	546	36	324	474	380	42	1.0037	€0.00
F96/4060/36#1.0037	4060	446	596	36	324	524	430	42	1.0037	€0.00
F96/4070/46#1.0037	4070	466	696	46	324	624	530	42	1.0037	€0.00
F96/4080/46#1.0037	4080	466	796	46	324	724	630	42	1.0037	€0.00
F96/4545/36#1.0037	4545	516	446	36	374	374	630	42	1.0037	€0.00
F96/4550/36#1.0037	4550	516	496	36	374	424	330	42	1.0037	€0.00
F96/4555/36#1.0037	4555	516	546	36	374	474	380	42	1.0037	€0.00
F96/4560/36#1.0037	4560	516	596	36	374	524	430	42	1.0037	€0.00
F96/4570/46#1.0037	4570	516	696	46	374	624	530	42	1.0037	€0.00
F96/4580/46#1.0037	4580	516	796	46	374	724	630	42	1.0037	€0.00
F96/5050/36#1.0037	5050	566	496	36	424	424	330	42	1.0037	€0.00
F96/5055/36#1.0037	5055	566	546	36	424	474	380	42	1.0037	€0.00
F96/5060/46#1.0037	5060	566	596	46	424	524	430	42	1.0037	€0.00
F96/5070/46#1.0037	5070	566	696	46	424	624	530	42	1.0037	€0.00
F96/5080/56#1.0037	5080	566	796	56	424	724	620	42	1.0037	€0.00
F96/5555/46#1.0037	5555	616	546	46	474	474	380	42	1.0037	€0.00
F96/5560/46#1.0037	5560	616	596	46	474	524	430	42	1.0037	€0.00
F96/5570/46#1.0037	5570	616	696	46	474	624	530	42	1.0037	€0.00
F96/5580/56#1.0037	5580	616	796	56	442	692	574	54	1.0037	€0.00
