Regulator – Max. Pressure Shut off Valve

Regulator – Max. Pressure Shut off Valve

Product specifications :
Regulator SET252(H) : According to EN88-2
Max. Pressure Shut off Valve SET275 : In accordance with the national standard of Iran INSO22107
In accordance with the standard : ISO7-1 و EN 10226
Working temperature : -15 up to 60°С
Gas types : Natural gas, liquefied petroleum gas, Air, Town gas
Threaded connections : DN40 (Rp1½) و DN50 (Rp2)
Weight (Kg) : 8.5
Maximum operating pressure : Up to 5 bar

Regulator – Max. Pressure Shut off Valve Unit SET852(H) includes a Regulator SET252(H), a Max. Pressure shut off valve SET275, required gas line connections (includes Integrated Flange SET952 and required accessory SET953), and pipes and fittings required to transfer the outlet pressure of regulator to the Max. Pressure shut off valve. The main advantages of using SET852(H) are: 1- Quick and easy installation 2- Ensuring proper assembling 3- The use of standard connections and run with high reliability.

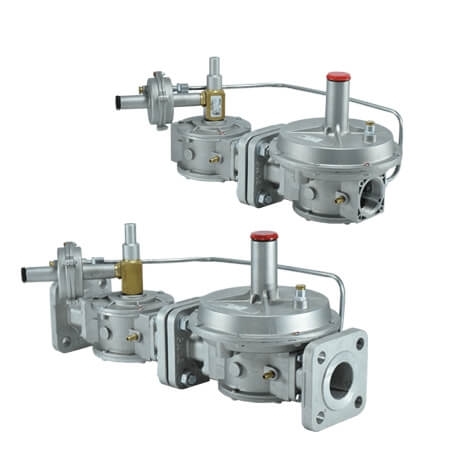

Picture of Regulator – Max. Pressure Shut off Valve
Title File Size Version Technical Data
کاتالوگ کنترل های خط گاز مشعل gas-controls.pdf 3.7 MB پاییز 1401
Technical Data
کاتالوگ شیر قطع سریع فشار بیشینه shut-off-valve.pdf 1.3 MB
Technical Data

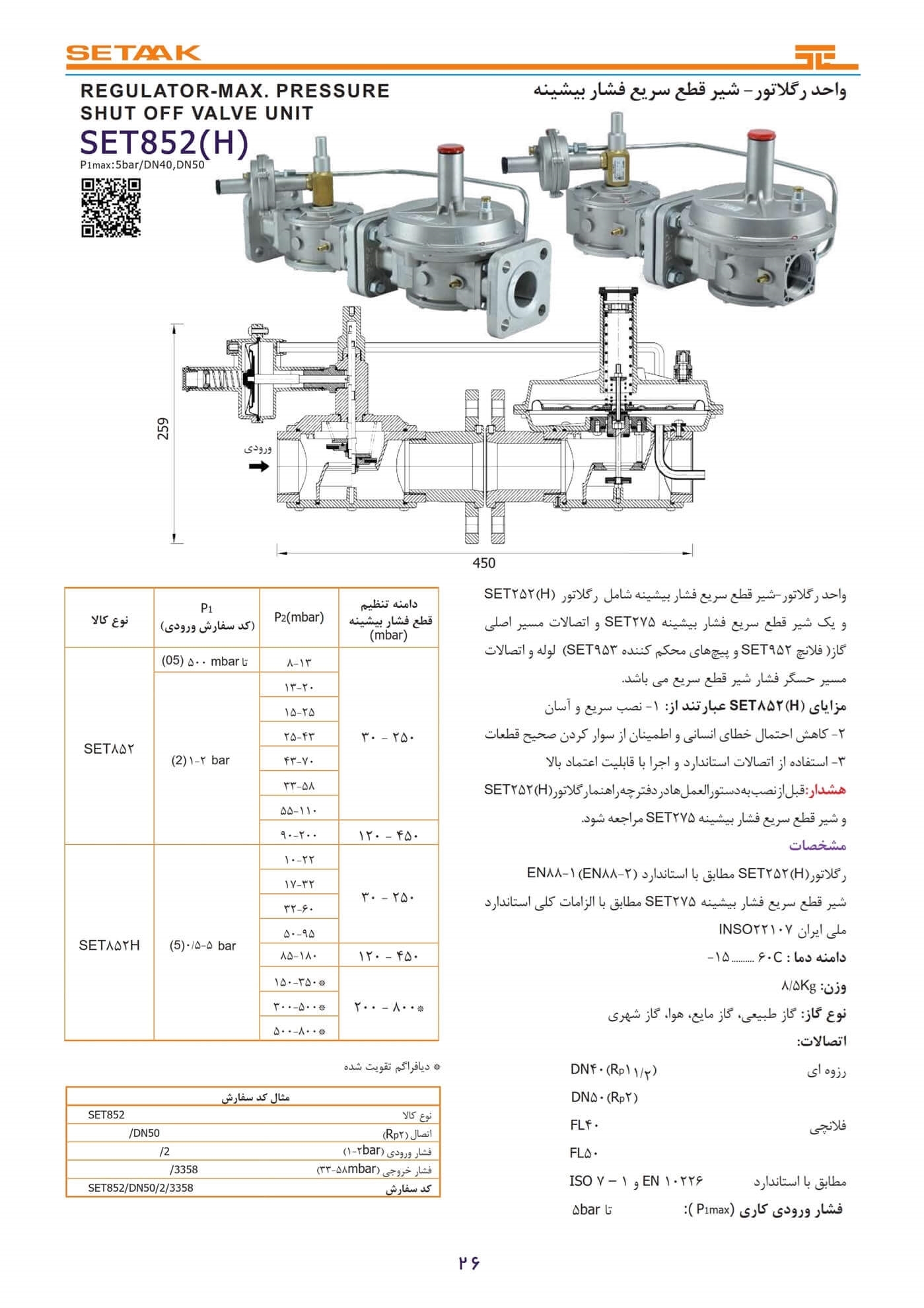

راهنمای رگلاتور شیر قطع سریع فشار بیشینه SET852(H) SE852H DN40،DN50.pdf 411.1 KB زمستان 1401
Technical Data

The table below is smart. Use the slider in the first row of each column to find the right product.

Ordering Code Nominal size Inlet pressure range Output pressure setting range (mbar) Setting range (mbar) Connection Price Add to cart Technical Data
SET852H/FL50/5/85180/T4
DN50 (Rp 2) Up to 5 bar 85 - 180 30 - 250 Flanged connection
€351.06
€342.28
SET852H/FL50/5/150300/T4
DN50 (Rp 2) Up to 5 bar 300 - 150 30 - 250 Flanged connection
€367.20
€358.02
SET852H/DN40/5/85180/T4
DN40 (Rp 1 1/2) 0.5 to 5 bar 85 - 180 30 - 250 Threaded connection
€311.66
€303.86
SET852H/FL40/5/85180/T4
DN40 (Rp 1 1/2) 0.5 to 5 bar 85 - 180 30 - 250 Flanged connection
€351.06
€342.28
SET852H/FL40/5/150300/T4
DN40 (Rp 1 1/2) 0.5 to 5 bar 300 - 150 30 - 250 Flanged connection
€367.20
€358.02
SET852H/DN40/5/150300/T4
DN40 (Rp 1 1/2) 0.5 to 5 bar 300 - 150 30 - 250 Threaded connection
€327.79
€319.60
SET852H/DN40/5/300500/T4
DN40 (Rp 1 1/2) 0.5 to 5 bar 500 - 300 30 - 250 Threaded connection
€327.79
€319.60
SET852H/FL40/5/1022/T4
DN40 (Rp 1 1/2) 0.5 to 5 bar 22 - 10 30 - 250 Flanged connection
€0.00
SET852H/FL40/5/1732/T4
DN40 (Rp 1 1/2) 0.5 to 5 bar 32 - 17 30 - 250 Flanged connection
€0.00
SET852H/DN40/5/5095/T4
DN40 (Rp 1 1/2) 0.5 to 5 bar 95 - 50 30 - 250 Threaded connection
€0.00
SET852H/FL40/5/5095/T4
DN40 (Rp 1 1/2) 0.5 to 5 bar 95 - 50 30 - 250 Flanged connection
€0.00
SET852H/FL40/5/300500/T4
DN40 (Rp 1 1/2) 0.5 to 5 bar 500 - 300 30 - 250 Flanged connection
€0.00
SET852H/DN40/5/500800/T4
DN40 (Rp 1 1/2) 0.5 to 5 bar 800 - 500 30 - 250 Threaded connection
€0.00
SET852H/FL40/5/500800/T4
DN40 (Rp 1 1/2) 0.5 to 5 bar 800 - 500 30 - 250 Flanged connection
€0.00
SET852/DN40/05/813/T4
DN40 (Rp 1 1/2) Up to 500 mbar 13 - 8 30 - 250 Threaded connection
€0.00
SET852/FL40/05/813/T4
DN40 (Rp 1 1/2) Up to 500 mbar 13 - 8 30 - 250 Flanged connection
€0.00
SET852/DN40/2/1320/T4
DN40 (Rp 1 1/2) 1 to 2 bar 20 - 13 30 - 250 Threaded connection
€0.00
SET852/FL40/2/1320/T4
DN40 (Rp 1 1/2) 1 to 2 bar 20 - 13 30 - 250 Flanged connection
€0.00
SET852/DN40/2/1525/T4
DN40 (Rp 1 1/2) 1 to 2 bar 25 - 15 30 - 250 Threaded connection
€0.00
SET852/FL40/2/1525/T4
DN40 (Rp 1 1/2) 1 to 2 bar 25 - 15 30 - 250 Flanged connection
€0.00
SET852/DN40/2/2543/T4
DN40 (Rp 1 1/2) 1 to 2 bar 43 - 25 30 - 250 Threaded connection
€0.00
SET852/FL40/2/2543/T4
DN40 (Rp 1 1/2) 1 to 2 bar 43 - 25 30 - 250 Flanged connection
€0.00
SET852/DN40/2/4370/T4
DN40 (Rp 1 1/2) 1 to 2 bar 70 - 43 30 - 250 Threaded connection
€0.00
SET852/FL40/2/4370/T4
DN40 (Rp 1 1/2) 1 to 2 bar 70 - 43 30 - 250 Flanged connection
€0.00
SET852/DN40/2/3358/T4
DN40 (Rp 1 1/2) 1 to 2 bar 58 - 33 30 - 250 Threaded connection
€0.00
SET852/FL40/2/3358/T4
DN40 (Rp 1 1/2) 1 to 2 bar 58 - 33 30 - 250 Flanged connection
€0.00
SET852/DN40/2/55110/T4
DN40 (Rp 1 1/2) 1 to 2 bar 110 - 55 30 - 250 Threaded connection
€0.00
SET852/FL40/2/55110/T4
DN40 (Rp 1 1/2) 1 to 2 bar 110 - 55 30 - 250 Flanged connection
€0.00
SET852/DN40/2/90200/T4
DN40 (Rp 1 1/2) 1 to 2 bar 200 - 90 30 - 250 Threaded connection
€0.00
SET852/FL40/2/90200/T4
DN40 (Rp 1 1/2) 1 to 2 bar 200 - 90 30 - 250 Flanged connection
€0.00
SET852H/DN40/5/1022/T4
DN40 (Rp 1 1/2) 0.5 to 5 bar 22 - 10 30 - 250 Threaded connection
€0.00
SET852H/DN40/5/1732/T4
DN40 (Rp 1 1/2) 0.5 to 5 bar 32 - 17 30 - 250 Threaded connection
€0.00
SET852H/DN40/5/3260/T4
DN40 (Rp 1 1/2) 0.5 to 5 bar 60 - 32 30 - 250 Threaded connection
€0.00
SET852H/FL40/5/3260/T4
DN40 (Rp 1 1/2) 0.5 to 5 bar 60 - 32 30 - 250 Flanged connection
€0.00
SET852H/FL50/5/3260/T4
DN50 (Rp 2) Up to 5 bar 60 - 32 30 - 250 Flanged connection
€0.00
SET852H/DN50/5/5095/T4
DN50 (Rp 2) Up to 5 bar 95 - 50 30 - 250 Threaded connection
€0.00
SET852H/FL50/5/5095/T4
DN50 (Rp 2) Up to 5 bar 95 - 50 30 - 250 Flanged connection
€0.00
SET852H/FL50/5/300500/T4
DN50 (Rp 2) Up to 5 bar 500 - 300 30 - 250 Flanged connection
€0.00
SET852H/DN50/5/500800/T4
DN50 (Rp 2) Up to 5 bar 800 - 500 30 - 250 Threaded connection
€0.00
SET852H/FL50/5/500800/T4
DN50 (Rp 2) Up to 5 bar 800 - 500 30 - 250 Flanged connection
€0.00
SET852/DN50/05/813/T4
DN50 (Rp 2) Up to 500 mbar 13 - 8 30 - 250 Threaded connection
€0.00
SET852/FL50/05/813/T4
DN50 (Rp 2) Up to 500 mbar 13 - 8 30 - 250 Flanged connection
€0.00
SET852/DN50/2/1320/T4
DN50 (Rp 2) 1 to 2 bar 20 - 13 30 - 250 Threaded connection
€0.00
SET852/FL50/2/1320/T4
DN50 (Rp 2) 1 to 2 bar 20 - 13 30 - 250 Flanged connection
€0.00
SET852/DN50/2/1525/T4
DN50 (Rp 2) 1 to 2 bar 25 - 15 30 - 250 Threaded connection
€0.00
SET852/FL50/2/1525/T4
DN50 (Rp 2) 1 to 2 bar 25 - 15 30 - 250 Flanged connection
€0.00
SET852/DN50/2/2543/T4
DN50 (Rp 2) 1 to 2 bar 43 - 25 30 - 250 Threaded connection
€0.00
SET852/FL50/2/2543/T4
DN50 (Rp 2) 1 to 2 bar 43 - 25 30 - 250 Flanged connection
€0.00
SET852/DN50/2/4370/T4
DN50 (Rp 2) 1 to 2 bar 70 - 43 30 - 250 Threaded connection
€0.00
SET852/FL50/2/4370/T4
DN50 (Rp 2) 1 to 2 bar 70 - 43 30 - 250 Flanged connection
€0.00
SET852/DN50/2/3358/T4
DN50 (Rp 2) 1 to 2 bar 58 - 33 30 - 250 Threaded connection
€0.00
SET852/FL50/2/3358/T4
DN50 (Rp 2) 1 to 2 bar 58 - 33 30 - 250 Flanged connection
€0.00
SET852/DN50/2/55110/T4
DN50 (Rp 2) 1 to 2 bar 110 - 55 30 - 250 Threaded connection
€0.00
SET852/FL50/2/55110/T4
DN50 (Rp 2) 1 to 2 bar 110 - 55 30 - 250 Flanged connection
€0.00
SET852/DN50/2/90200/T4
DN50 (Rp 2) 1 to 2 bar 200 - 90 30 - 250 Threaded connection
€0.00
SET852/FL50/2/90200/T4
DN50 (Rp 2) 1 to 2 bar 200 - 90 30 - 250 Flanged connection
€0.00
SET852H/DN50/5/1022/T4
DN50 (Rp 2) Up to 5 bar 22 - 10 30 - 250 Threaded connection
€0.00
SET852H/DN50/5/1732/T4
DN50 (Rp 2) Up to 5 bar 32 - 17 30 - 250 Threaded connection
€0.00
SET852H/FL50/5/1732/T4
DN50 (Rp 2) Up to 5 bar 22 - 10 30 - 250 Flanged connection
€0.00
SET852H/DN50/5/3260/T4
DN50 (Rp 2) Up to 5 bar 60 - 32 30 - 250 Threaded connection
€0.00
SET852H/FL50/5/1022/T4
DN50 (Rp 2) Up to 5 bar 22 - 10 30 - 250 Flanged connection
€0.00
SET852H/DN50/5/85180/T4
DN50 (Rp 2) Up to 5 bar 85 - 180 30 - 250 Threaded connection
€311.66
€303.86
SET852H/DN50/5/150300/T4
DN50 (Rp 2) Up to 5 bar 300 - 150 30 - 250 Threaded connection
€327.79
€319.60
SET852H/DN50/5/300500/T4
DN50 (Rp 2) Up to 5 bar 500 - 300 30 - 250 Threaded connection
€327.79
€319.60
