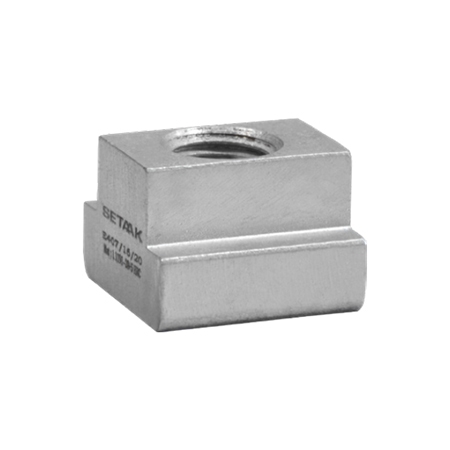

T NUT E407

Name: Setaak
Address: isfahan, IR
Telephone: +9831 3386 3430

T NUT

Product specifications :

● DIN 508
● Tensile strength class 10.
● Full load capacity is only allowod with the full thread length matched.
* Use the length of the thread.
** Excess of Din508

Attachments

The table below is smart. Use the slider in the first row of each column to find the right product.

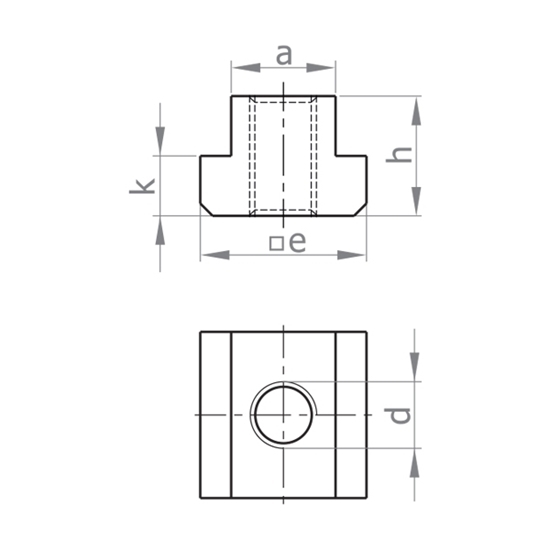

Ordering Code	Slot	d	a	e	h	k	Price	Add to cart
*E407/8/10	10	M8	9.7	15	12	6	€0.66 €0.65	Qty:
E407/8/12	12	M8	11.7	18	14	7	€0.78 €0.76	Qty:
E407/10/12	12	M10	11.7	18	14	7	Call for pricing
E407/10/16	16	M10	15.7	25	18	9	Call for pricing
E407/10/18	18	M10	17.7	28	20	10	Call for pricing
E407/12/14	14	M12	13.7	22	16	8	Call for pricing
E407/12/18	18	M12	17.7	28	20	10	€1.36 €1.33	Qty:
E407/12/20	20	M12	19.7	32	24	12	Call for pricing
E407/14/16	16	M14	15.7	25	18	9	Call for pricing
E407/14/18	18	M14	17.7	28	20	10	€1.36 €1.33	Qty:
E407/16/18	18	M16	17.7	28	20	10	Call for pricing
E407/16/20	20	M16	19.7	32	24	12	€1.61 €1.57	Qty:
E407/16/22	22	M16	21.7	35	28	14	Call for pricing
E407/18/20	20	M18	19.7	32	24	12	Call for pricing
E407/18/22	22	M18	21.7	35	28	14	€2.09 €2.04	Qty:
*E407/20/22	22	M20	21.7	35	28	14	€2.10 €2.04	Qty:
E407/20/24	24	M20	23.7	40	32	16	Call for pricing
E407/22/28	28	M22	27.7	44	36	18	Call for pricing
E407/24/28	28	M24	27.7	44	36	18	Call for pricing
E407/5/6	6	M5	5.7	10	8	4	€0.00
E407/6/8	8	M6	7.7	13	10	6	€0.00
E407/6/10	10	M6	9.7	15	12	6	€0.00
E407/8/14	14	M8	13.7	22	16	8	€0.00
E407/8/16	16	M8	15.7	25	18	9	€0.00
E407/8/18	18	M8	17.7	28	20	10	€0.00
E407/10/14	14	M10	13.7	22	16	8	Call for pricing
E407/12/16	16	M12	15.7	25	18	9	Call for pricing
E407/16/24	24	M16	23.7	40	32	16	€0.00
E407/16/28	28	M16	27.7	44	36	18	€0.00
E407/20/28	28	M20	27.7	44	36	18	€0.00
E407/22/24	24	M22	23.7	40	32	16	€0.00
E407/24/30	30	M24	29.7	48	38	19	€0.00
E407/24/36	36	M24	35.6	54	44	22	€0.00
E407/27/32	32	M27	31.6	50	40	20	Call for pricing
E407/30/36	36	M30	35.6	54	44	22	€0.00
E407/30/42	42	M30	41.6	65	52	26	Call for pricing
E407/36/42	42	M36	41.6	65	52	26	Call for pricing
E407/42/48	48	M42	47.6	75	60	30	Call for pricing
