Oilless Guide Bush D043

Oilless Guide Bush

Product specifications :

● Non-Liquid Lubricant
● Material: Bronze
● Are used in applications of linear or rotary motion in tool making, and similar engineering uses.
● Advantages of oilless guide elements:
- Good emergency sliding properties.
- Highest carrying capacity at low speed.
- Useable under water or with chemical solutions.
- Extremely wide temperature resistance hot and cold.
- Damping properties in presence of vibration.

plugin.setaak.buybutton
Sharing

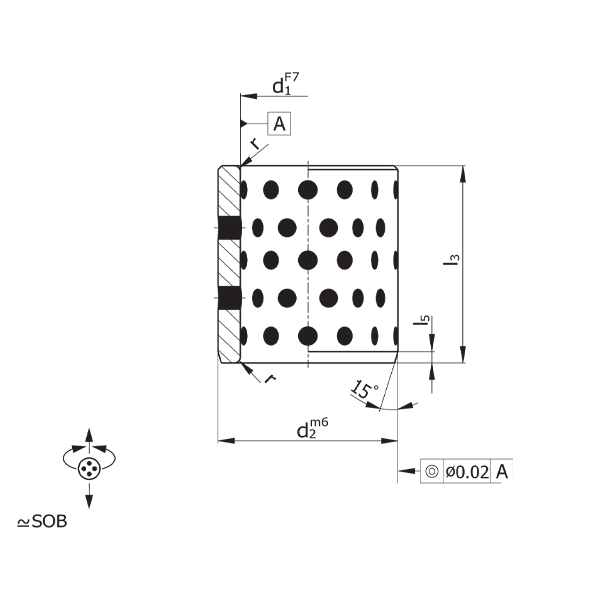

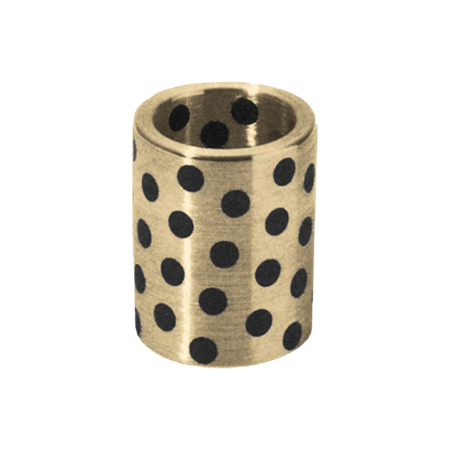

Picture of Oilless Guide Bush D043
Title File Size Version Technical Data
فایل سه بعدی CATPart برای بوش راهنما گرافیت دار D043 d043-catpart.rar 86.7 KB پاییز 1401
فایل سه بعدی STP برای بوش راهنما گرافیت دار D043 d043-stp.rar 1.2 MB پاییز 1401
در حال بارگیری محصولات...

Points:


● The sliding surface should be lightly greased with lithium grease emulsion, prior to commissioning.

● From 25 to 30 per-cent of the guide systems are equipped with solid lubricant.

● contact adhesive: G7 bore.

● If using press fitment, reduce inside bush diameter.

● Bushes can be used with radial or axial motions.

● The surfaces in use should be finished ground and pref-erably have parallel sliding movement.

● Up to 200 C° for heat tolerance for general uses.

● press fits: H7 bore.

● If required secure with set screw.
