Oilless Guide Bush D046

Oilless Guide Bush

Product specifications :

● Non-Liquid Lubricant
● Material: Bronze
● DIN 9834/ISO 9448
● Are used in applications of linear or rotary motion in tool making, and similar engineering uses.
● Advantages of oilless guide elements:
- Good emergency sliding properties.
- Highest carrying capacity at low speed.
- Useable under water or with chemical solutions.
- Extremely wide temperature resistance hot and cold.
- Damping properties in presence of vibration.

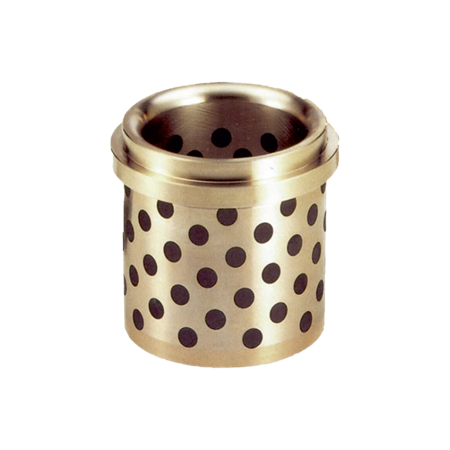

Picture of Oilless Guide Bush D046
Title File Size Version Technical Data
فایل سه بعدی CATPart برای بوش راهنما D046 d046-catpart.rar 90.2 KB پاییز 1401
فایل سه بعدی STP برای بوش راهنما D046 d046-stp.rar 66.2 KB پاییز 1401

The table below is smart. Use the slider in the first row of each column to find the right product.

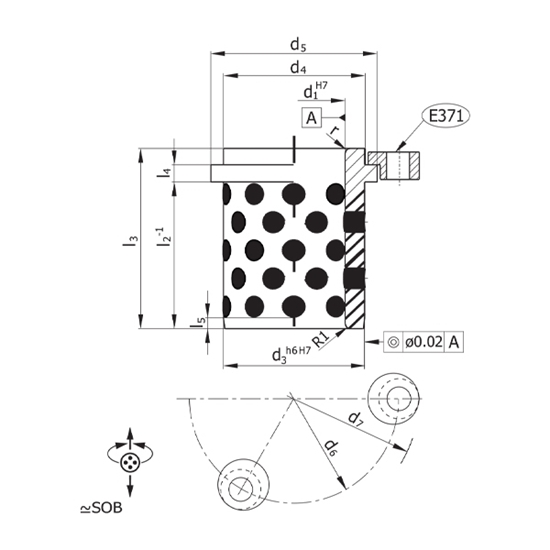

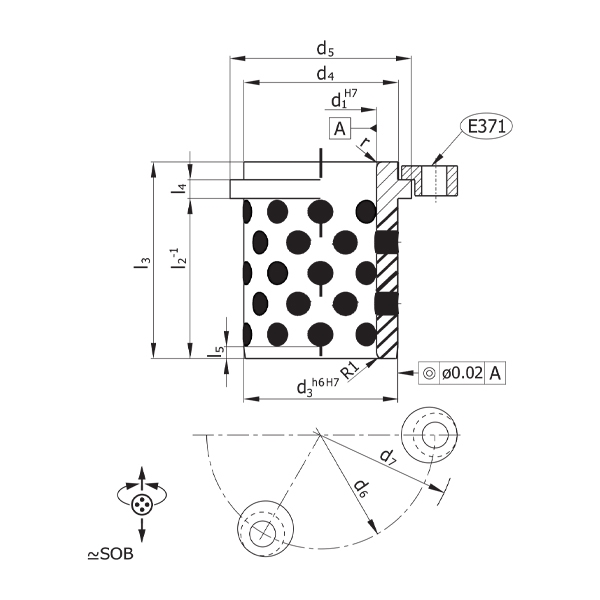

Ordering Code d1 d3 d4 d5 d6 d7 l2 l3 l4 l5 r E371/ Price Add to cart Technical Data
D046/24
24 32 32 39 53 64 32 40 6 3 3 6
Call for pricing
D046/25
25 32 32 39 53 64 32 40 6 3 3 6
Call for pricing
D046/30
30 40 40 48 61 72 36 50 6 4 3 6
Call for pricing
D046/32
32 40 40 48 61 72 36 50 6 4 3 6
Call for pricing
D046/38
38 50 50 58 71 82 46 63 6 5 3 6
Call for pricing
D046/40
40 50 50 58 71 82 46 63 6 5 3 6
Call for pricing
D046/48
48 63 63 71 84 95 56 71 6 6.3 5 6
Call for pricing
D046/50
50 63 63 71 84 95 56 71 6 6.3 5 6
Call for pricing
D046/60
60 80 80 90 111 129 56 80 6 8 6 10
Call for pricing
D046/63
63 80 80 90 111 129 56 80 6 8 6 10
Call for pricing
D046/80
80 100 100 112 133 151 76 100 6 10 8 10
Call for pricing
D046/100
100 125 125 140 161 179 106 125 6 12.5 10 10
Call for pricing
D046/125
125 160 160 180 201 219 126 160 6 16 12 10
Call for pricing
D046/160
160 200 200 220 241 259 166 200 6 16 18 10
Call for pricing

Points:


● The sliding surface should be lightly greased with lithium grease emulsion, prior to commissioning.

● From 25 to 30 per-cent of the guide systems are equipped with solid lubricant.

● Recommended for special guide pillars D029 , D022 to DIN9833/ISO9182-3

● Bushes can be used with radial or axial motions.

● The surfaces in use should be finished ground and pref-erably have parallel sliding movement.

● Up to 200 C° for heat tolerance for general uses.

● Producing with different height and diameter from the table is possible.
