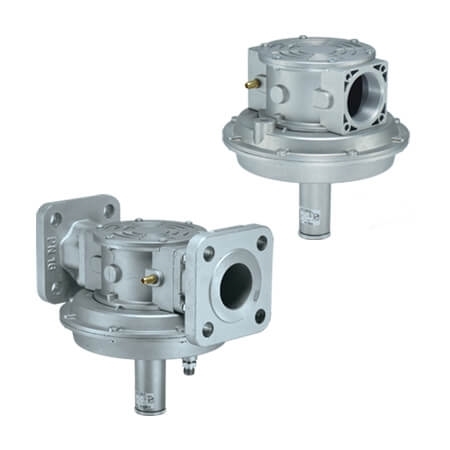

Gas/Air Ratio Control

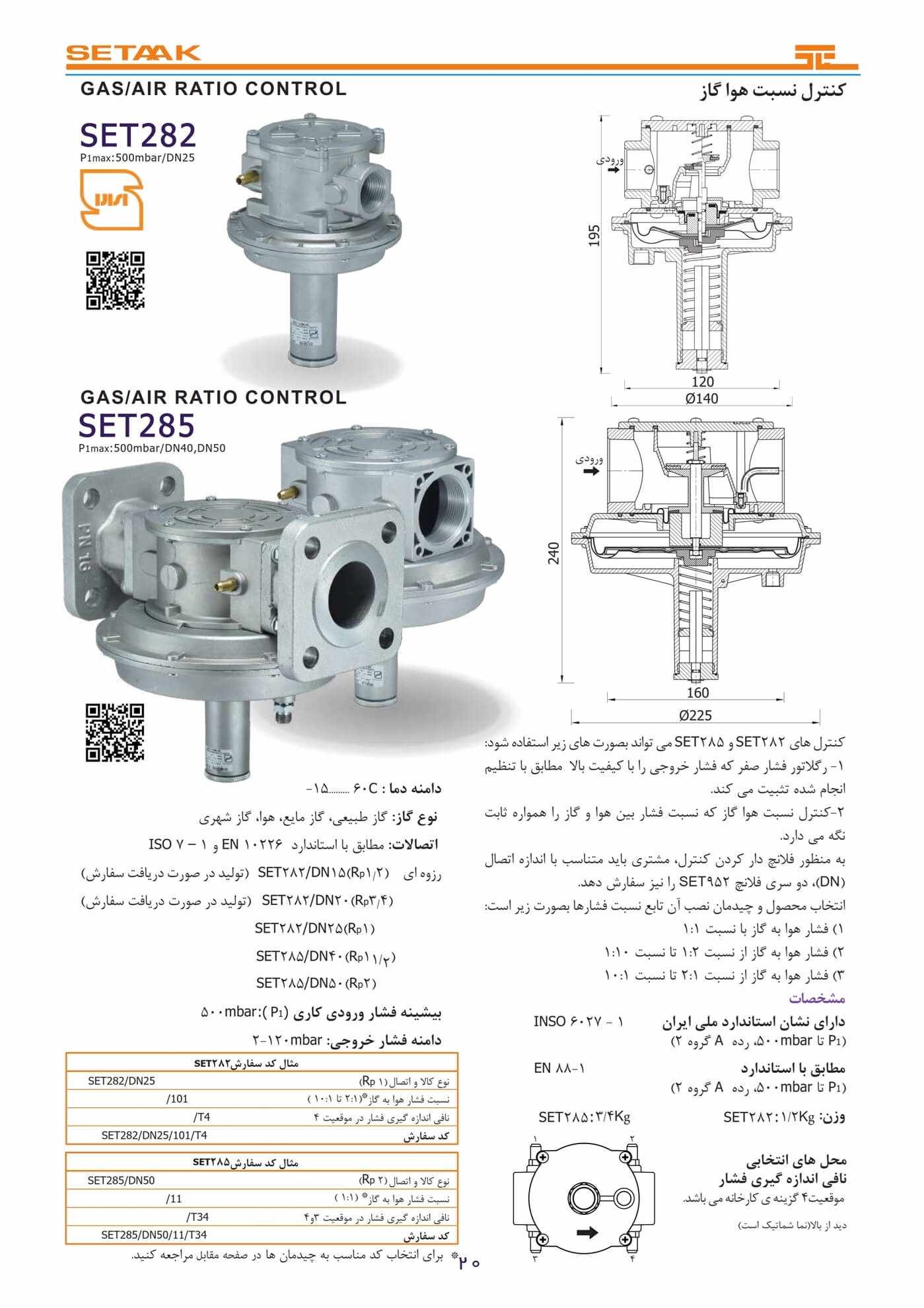

Product specifications :

gas air ratio regulator SET282 can be used as follows:
1- Zero regulator, keeps the downstream pressure uniform from low to high capacities.
2- Air/gas ratio regulator, keeps the air/gas ratio constant even when changing the air pressure.

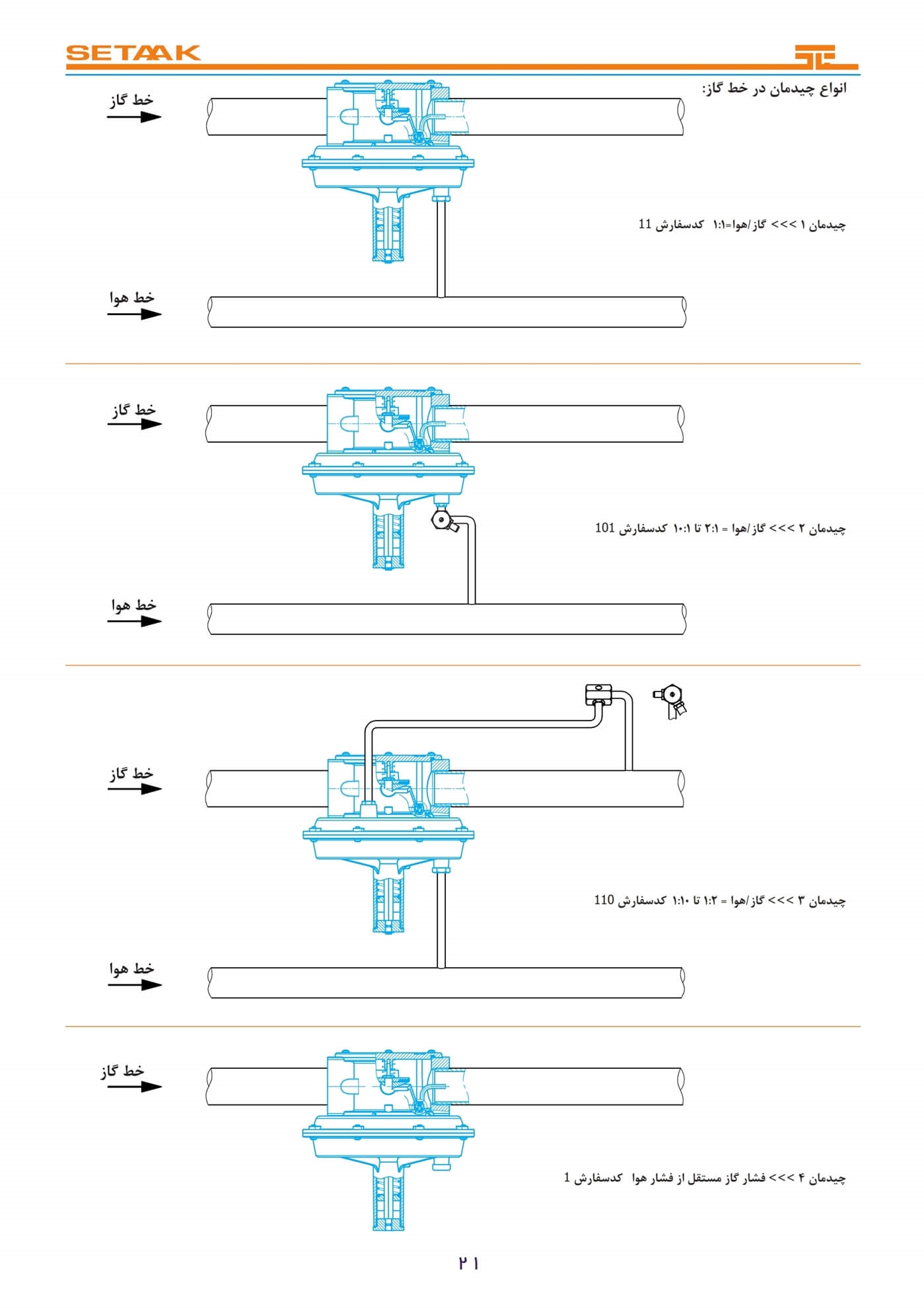

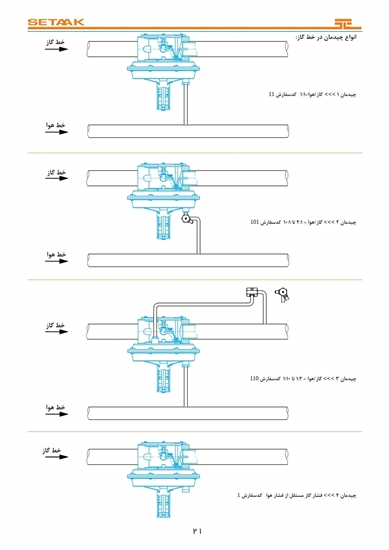

Based on the pressure ratio, product selection and installation layout should be as follows:
Gas/Air pressure in a ratio of 1:1
Gas/Air pressure from 1:2 ratio to 1:10 ratio (Requires a proportional valve in the air sensor line)
Gas/Air pressure from 2:1 ratio to 10:1 ratio (Requires a proportional valve in the gas sensor line)

Start order request
Picture of Gas/Air Ratio Control | SET285
Picture of Gas/Air Ratio Control | SET285
Title File Size Version Download Data
کاتالوگ کنترل های خط گاز مشعل gas-controls.pdf 3.7 MB پاییز 1401
کاتالوگ کنترل نسبت هوا گاز gas-air-control.pdf 1.3 MB تابستان 1402
راهنمای کنترل نسبت هوا گاز SET282 SET282 SET285 DN25،DN40،DN50.pdf 518.6 KB پاییز 1401
