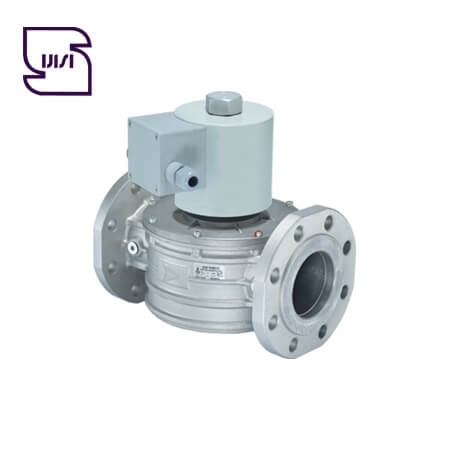

Fast Opening Solenoid Valve | SET144/RQ/DN65-DN80

Fast Opening Solenoid Valve

Product specifications :
In accordance with the standard : EN 161 - EN 13611 (Group 2)
Working temperature : -20 up to 60°С
Gas types : Natural gas, liquefied petroleum gas, Air, Town gas
Connection : Flange DN65, DN80
Flange connections in accordance with : ISO7005-PN16
Weight (Kg) : 9.7
Inlet pressure range : Up to 360 mbar

Normally closed automatic fast opening solenoid valve opens the flow of gas when the coil is electrically powered and closes when it offs. It can be controlled by thermostats, switches, etc. In addition, you can control it by CPI switches.

Start order request
Sharing

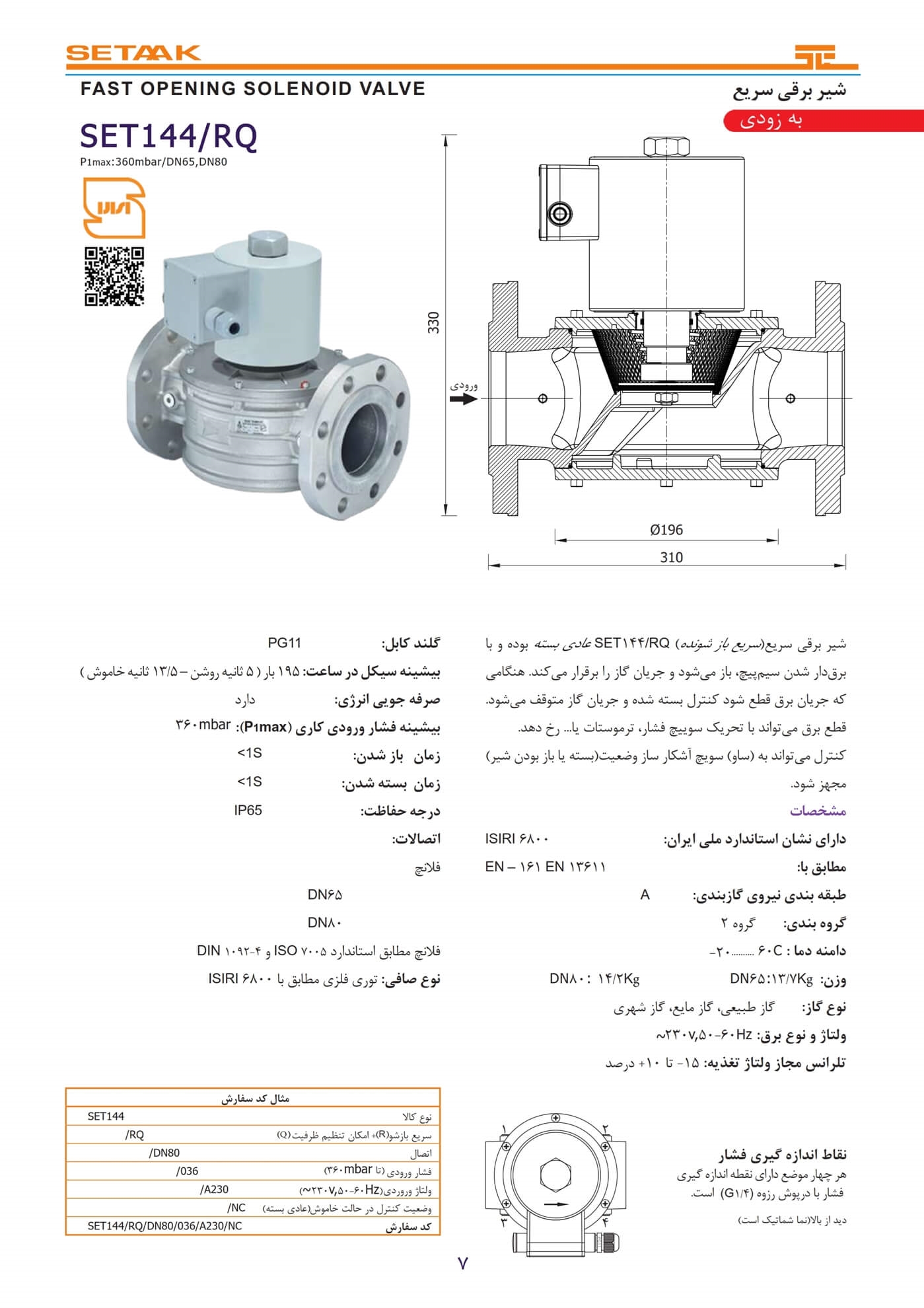

Picture of Fast Opening Solenoid Valve | SET144/RQ/DN65-DN80
Title File Size Version Download Data
کاتالوگ کنترل های خط گاز مشعل gas-controls.pdf 3.7 MB پاییز 1401
کاتالوگ شیر برقی gas-controls-solenoid-valve.pdf 1.6 MB
راهنمای شیر برقی سریع SET144 RQ DN65,DN80.pdf 499 KB زمستان 1401
